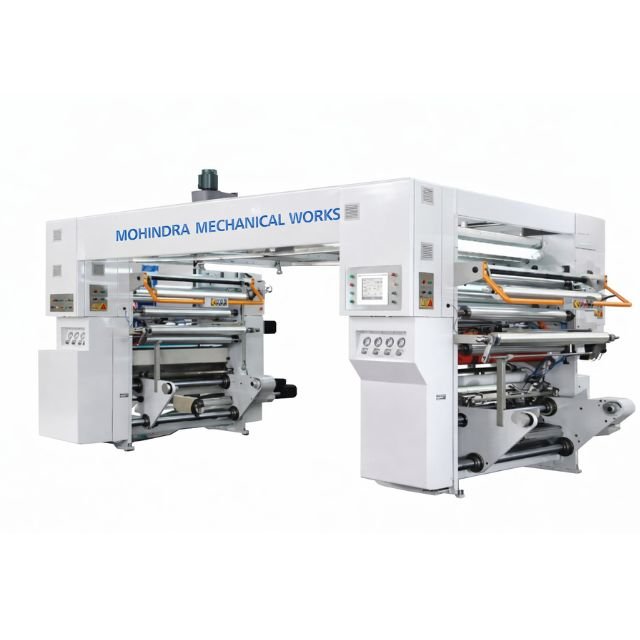

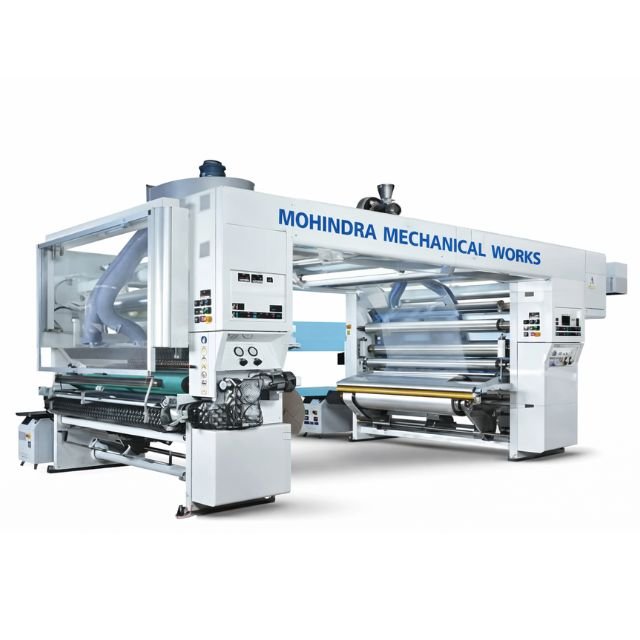

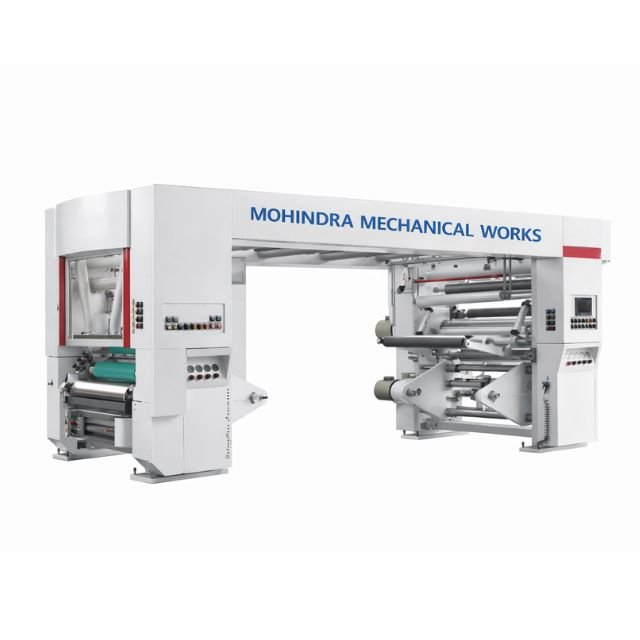

Solventless Lamination Machine

Speed 450 MTR Per Min.

Mohindra Engineering Company is a leading manufacturer of high-speed 450 m/min Solventless Lamination Machines in India, delivering advanced and dependable solutions for modern industrial lamination requirements. Our fully automatic machine is engineered for smooth, energy-efficient, and continuous production, making it an ideal choice for flexible packaging and multilayer film industries.

Designed for precision performance and stable operation, this high-speed lamination system ensures uniform adhesive coating and consistent bonding quality across the entire web width. With an operating speed of up to 450 meters per minute, it significantly enhances productivity while maintaining accuracy, reduced wastage, and low operational costs.

The machine features a heavy-duty mechanical structure combined with an advanced drive and control system that enables accurate tension management and stable web movement. Its shaftless unwind design and automatic web guiding mechanism allow wrinkle-free processing of various substrates, ensuring smooth material flow and perfect alignment during high-speed operation.

Our solventless lamination technology uses a two-component solvent-free adhesive system along with precision temperature-controlled rollers to achieve excellent bonding strength and flawless lamination finish. This eco-friendly process eliminates solvent emissions, improves workplace safety, and lowers energy consumption, making it suitable for modern sustainable production environments.

The machine is capable of laminating materials such as Polyester, BOPP, LDPE, LLDPE, HDPE, metallized films, PVC, and aluminum foil, which are widely used in food packaging, pharmaceutical laminates, industrial films, and specialty flexible materials.

Technical Specifications – 450 M/Min Solventless Lamination Machine

Category

Specification

Machine Type

Solventless Lamination

Maximum Working Width

1300 mm

Minimum Working Width

300 mm

Mechanical Speed

Up to 500 mpm

Working Speed

Up to 450 mpm

Roller Face Width

1400 mm

Unwind / Rewind System

Shaftless Unwind – 2 Stations

Maximum Roll Diameter

1000 mm

Maximum Roll Weight

1000 kg

Core Diameter

76 mm / 152 mm

Tension Control

Automatic Load Cell Tension Control

Drive & Control System

PLC Based Drive System

Motors

AC Servo Motors

Heating System

Temperature Controlled Heating Rollers

Adhesive System

Two-Component Solventless Adhesive

Web Guiding

 Automatic Edge Guide System

Compatible Materials

Polyester, BOPP, LDPE, LLDPE, HDPE, Metallized Films, Aluminum Foil

Power Supply

415V, 3 Phase, 50 Hz

Compressed Air

6–8 Bar (Dry & Filtered)

Water Temperature

15–30°C

Machine Dimensions (L×W×H)

Approx. 22 ft × 11 ft × 10 ft

Machine Weight

 Approx. 9–10 Tons

Solventless Lamination Machine Size & Price in 350 MPM

SIZE -- 42 INCHS

PRICE -- 55,00,000/-

SIZE -- 52 INCHS

PRICE -- 58,00,000/-

SIZE -- 62 INCHS

PRICE -- 60,00,000/-

SIZE -- 72 INCHS

PRICE -- 65,00,000/-

SIZE -- 82 INCHS

PRICE -- 70,00,000/-
