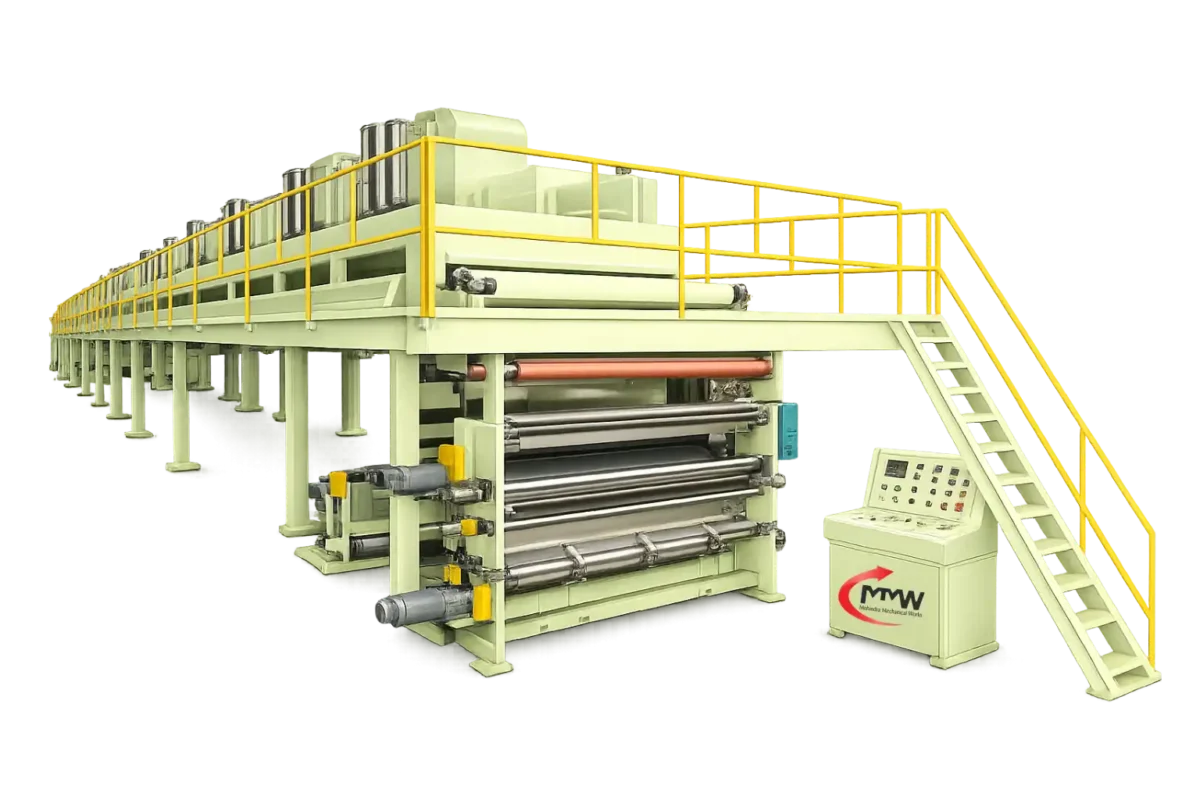

Heavy-Duty Canvas Fabric Blade Coating Machine
Excellence in Technical Textile Coating
The Canvas Fabric Blade Coating Machine (commonly known as a Knife Coating Machine) is an industrial-grade solution engineered for applying precise polymer layers onto heavy-duty fabrics. Canvas, known for its thickness and durability, requires a specialized coating mechanism to ensure uniform penetration and surface finish. This machine uses a high-precision “Knife-over-Roll” or “Knife-in-Air” blade system to evenly spread coatings like PVC, PU, Acrylic, Rubber, or Water-repellent chemicals onto the canvas fabric. It is the backbone for manufacturing waterproof tarpaulins, heavy-duty tents, military gear, outdoor awnings, and premium luggage fabrics.
Request a Quote
Contact us today to learn more, book a demonstration, or simply connect with our experts.
Technical Working Principle
- Unwinding: The heavy canvas roll is fed smoothly into the machine with automatic web-guiding to prevent misalignment.
- Blade Coating (Knife System): A precisely engineered steel blade regulates the exact thickness of the coating chemical being applied onto the moving fabric.
- Drying & Curing: The coated canvas passes through a multi-zone heating chamber where the chemical is cured and bonded perfectly with the fabric fibers.
- Rewinding: The finished, coated canvas is cooled down and wound tightly into commercial-ready rolls.
Key Performance Features
- Precision Micrometer Blade Adjustment: Allows operators to control the coating thickness down to the exact micron, ensuring consistent quality across the entire width of the fabric.
- Heavy-Duty Structural Design: Canvas is a stiff, heavy material; our machine is built with a reinforced steel frame to handle high tension and eliminate vibrations during high-speed operations.
- Multi-Zone Industrial Dryer: Features advanced air-circulation chambers (heated by electricity, gas, or thermic fluid) that ensure rapid, uniform drying without scorching or shrinking the canvas.
- Versatile Coating Head: Easily adjustable for different coating styles, including direct coating, floating knife coating, and blank-et coating based on product requirements.
- Smart PLC Automation: Equipped with a centralized touchscreen panel to synchronize the speed of the coating roller, blade angle, and oven temperature perfectly.
Major Industrial Applications
- Outdoor & Infrastructure: Waterproof tarpaulins, truck covers, temporary shelters, and architectural tents.
- Defense & Safety: Flame-retardant canvas, military-grade backpacks, and rugged protective gear.
- Marine & Industrial: Heavy-duty boat covers, oil booms, and industrial conveyor belt liners.
- Fashion & Luggage: Stiff, coated canvas for luxury bags, footwear, and artistic oil painting canvases.
The Competitive Advantage
Our Canvas Blade Coating Machine is engineered to minimize chemical wastage while maximizing throughput. By ensuring a flawless bond between the chemical compound and the heavy canvas substrate, it delivers superior scratch resistance, weatherproofing, and durability to your end product.
Technical Specifications
|
Category |
Specification |
|---|---|
|
Applicable Fabric |
Heavy Canvas, Cotton Duck, Polyester, Tarpaulin Fabric |
|
Coating Medium |
PVC, PU, Acrylic, Silicone, Fire-retardant chemicals |
|
Working Width |
1200 mm to 3200 mm (As per requirement) |
|
Coating Method |
Knife-over-Roll / Knife-over-Air (Floating Blade) |
|
Machine Speed |
10 - 45 meters / minute (Depending on coating thickness) |
|
Heating Source |
LPG / Natural Gas / Thermic Fluid / Electrical |
