Advanced coating technology for precise application and consistent performance.
Our DG Coating Machine is engineered for accurate and uniform coating on various substrates, ensuring high productivity, smooth operation, and reliable industrial output.
Introduction to DG Coating Machine
If you are looking to apply a uniform and smooth coating to a material, the DG coating machine is an excellent solution. This machine is used across various industries where coating quality and precision are paramount. It facilitates consistent coating on substrates such as paper, film, foil, and other flexible materials.
At Mohindra Mechanical Works, we have designed the DG coating machine to ensure uniform coating thickness across the entire surface. This enhances the quality of the final product and minimizes material wastage. Our machine operates at high speeds and is user-friendly. A key feature of our service is the ability to customize the machine according to specific client requirements; as an ‘Indian-made’ company with in-house manufacturing capabilities, we fabricate the machine parts ourselves.
Technical Specifications
|
Category |
Specification |
|---|---|
|
Machine Type |
DG Coating Machine |
|
Coating Method |
Gravure Roll / Anilox Roll Coating |
|
Coating Material |
DG Lacquer, Water-Based Coating, UV Primer (Optional) |
|
Coating Process |
Roll-to-Roll Lacquer Coating |
|
Web Width |
500 mm – 1600 mm |
|
Coating Width |
Up to 1550 mm |
|
Machine Speed |
Up to 150–250 m/min |
|
Coating Thickness |
2–20 GSM (Adjustable) |
|
Substrate Compatibility |
Paper, Duplex Board, Kraft Paper, Art Paper, Coated Paper & Specialty Paper |
|
Unwinder Type |
Shaft / Shaftless Unwinder (Optional) |
|
Rewinder Type |
Surface / Center Rewinder |
|
Tension Control |
Automatic Digital Tension Control |
|
Drying System |
Hot Air Dryer / Electrical Heating System |
|
Heating Source |
Electric / Gas / Thermic Fluid (Optional) |
|
Applications |
Packaging Paper, Printed Sheets, Premium Paper, Carton Board, Book Covers & Industrial Paper Products |
Our DG Coating Machine Range
Explore our range of DG coating machines designed for precise coating application, smooth operation, and consistent performance across various industrial materials.

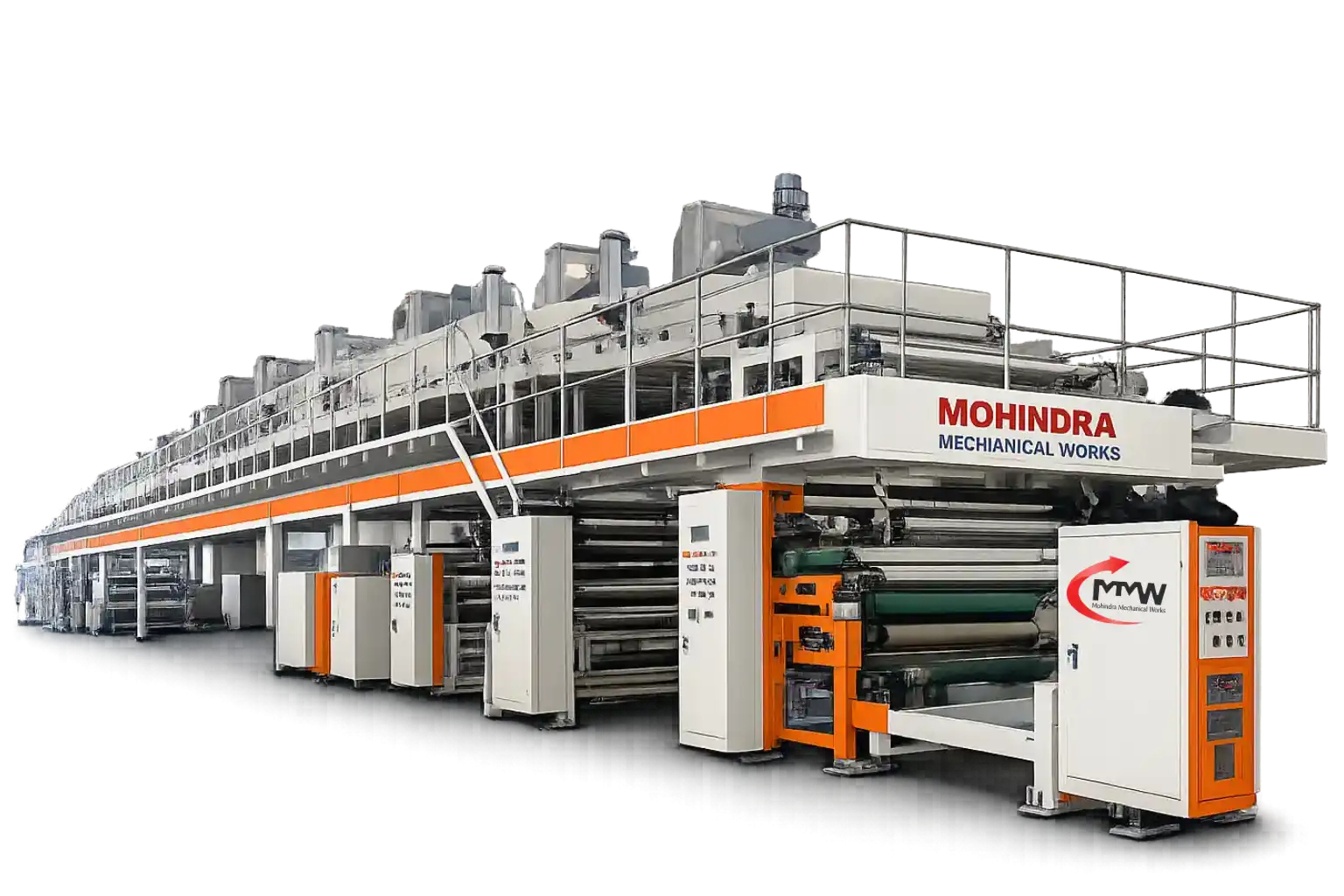

Hot Stamping DG Coating Machine
DG coating based machine designed for hot stamping applications with uniform coating and superior surface finish.
-
Max web width
1000 / 1300 / 1600 mm -
Max unwinding dia.
Up to 1000 mm -
Machine Actual Speed
Up to 100 – 180 MPM

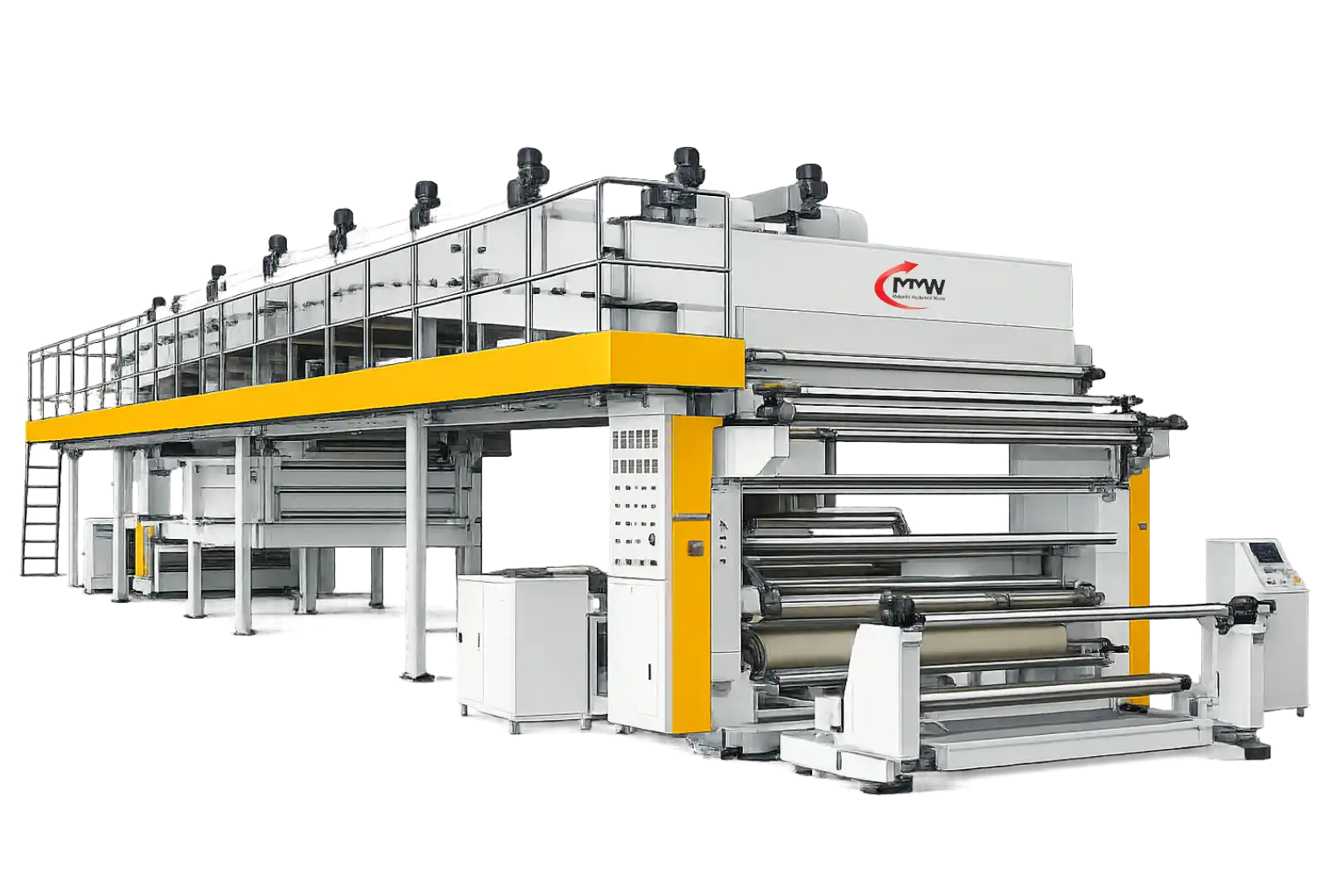

Lacquer Coating Machine
Lacquer Coating Machine applies a uniform lacquer coating to enhance gloss, surface protection, and print quality on paper and paperboard.
-
Max web width
1000 / 1300 / 1600 mm -
Max unwinding dia.
Up to 1000 mm -
Machine Actual Speed
Up to 100 – 180 MPM

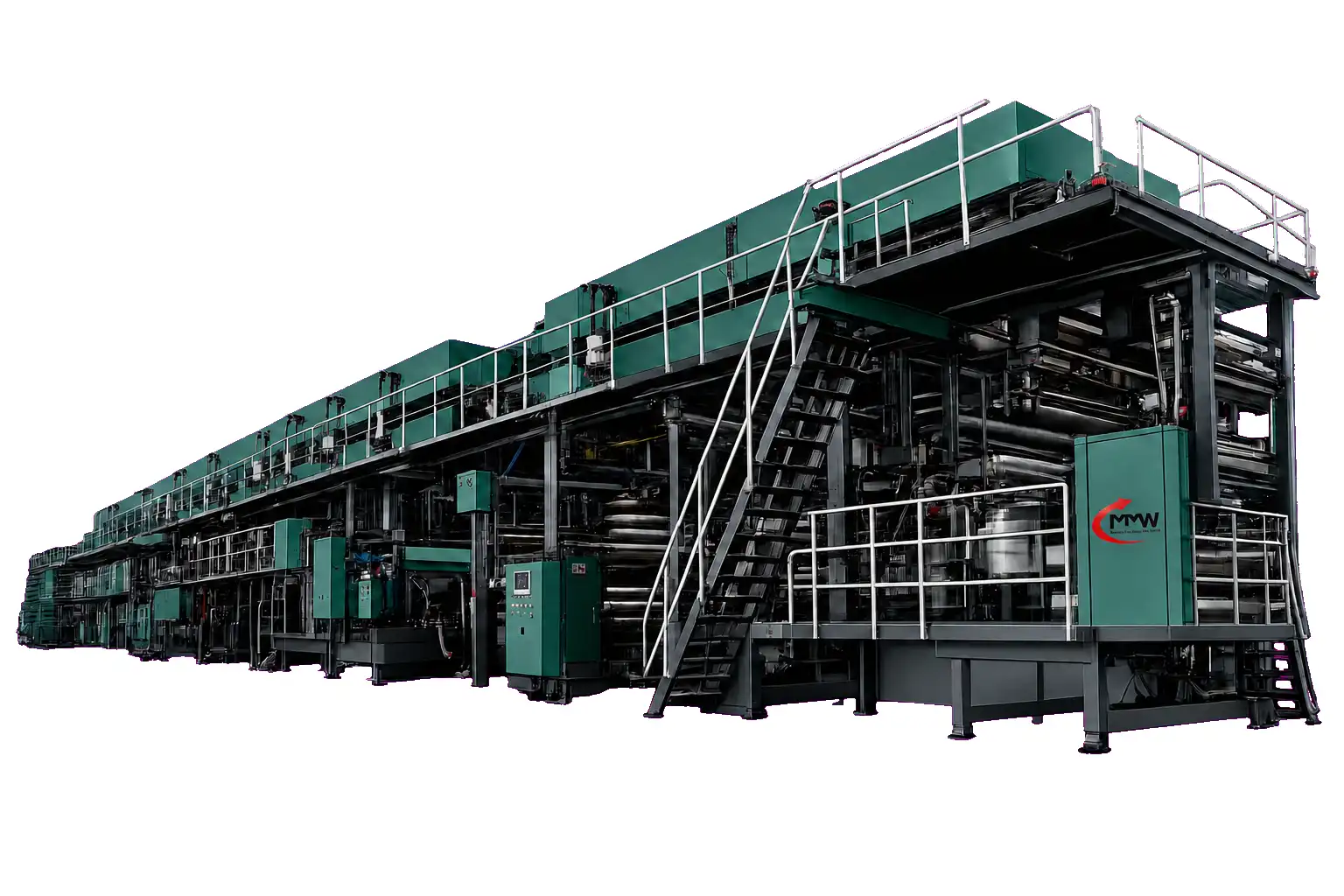

Polyester DG Lacquer Coating Machine
Designed for uniform DG lacquer coating on polyester film, delivering strong adhesion, smooth finishing and consistent coating quality.
-
Max web width
1000 / 1300 / 1600 mm -
Max unwinding dia.
Up to 1000 mm -
Machine Actual Speed
Up to 100 – 180 MPM
Hot Stamping DG Coating Machine
DG coating based machine designed for hot stamping applications with uniform coating and superior surface finish.
-
Max web width
1000 / 1300 / 1600 mm -
Max unwinding dia.
Up to 1000 mm -
Machine Actual Speed
Up to 100 – 180 MPM
Lacquer Coating Machine
Lacquer Coating Machine applies a uniform lacquer coating to enhance gloss, surface protection, and print quality on paper and paperboard.
-
Max web width
1000 / 1300 / 1600 mm -
Max unwinding dia.
Up to 1000 mm -
Machine Actual Speed
Up to 100 – 180 MPM
Polyester DG Lacquer Coating Machine
Designed for uniform DG lacquer coating on polyester film, delivering strong adhesion, smooth finishing and consistent coating quality.
-
Max web width
1000 / 1300 / 1600 mm -
Max unwinding dia.
Up to 1000 mm -
Machine Actual Speed
Up to 100 – 180 MPM
