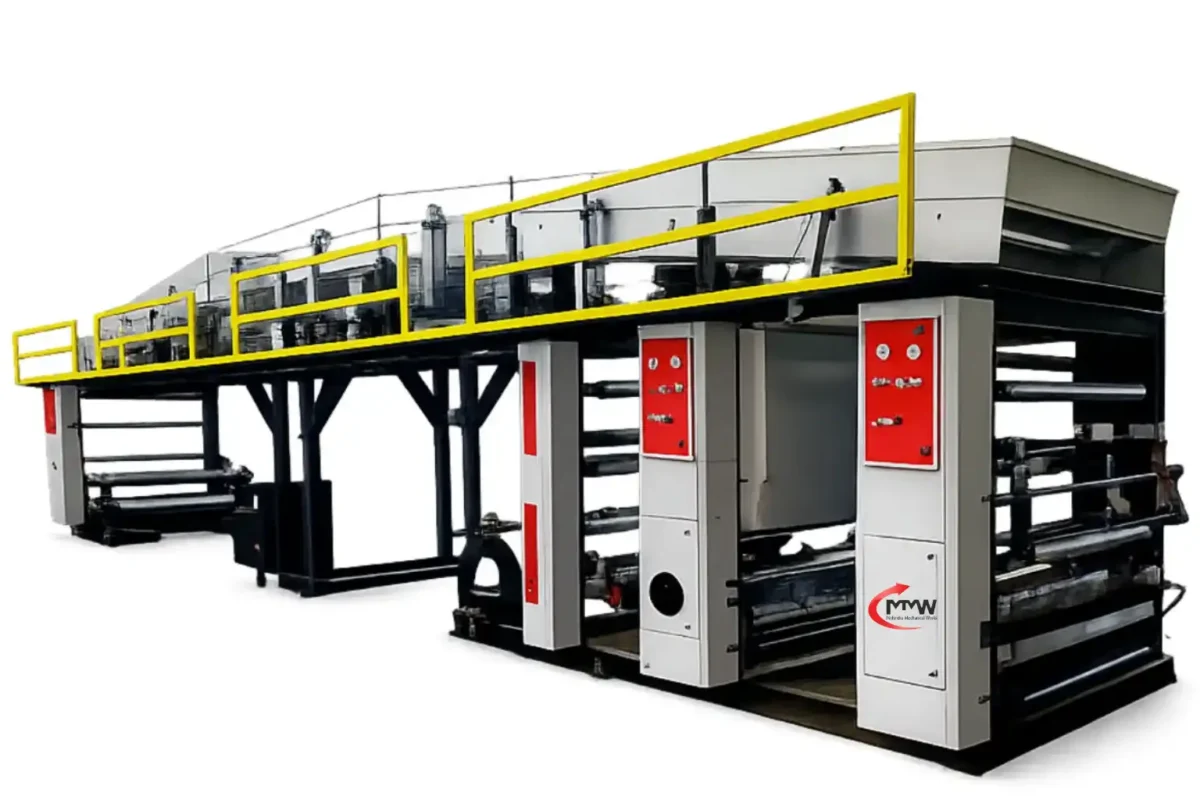

BOPP Self-Adhesive Tape Coating Machine
Precision Coating Technology for Consistent BOPP Tape Production
BOPP Self Adhesive Tape Coating Machine is used for applying adhesive layers to the BOPP film to manufacture packaging tapes and carton-sealing tapes. The machine ensures the application of controlled and continuous layers of adhesive through regulated web traveling, effective application of the adhesive, drying and rewinding. The machine helps to manufacture transparent, brown, colored and printed BOPP tapes that can be used in packaging, logistics, e-commerce and industry applications. The machine’s production parameters can be adjusted depending on different widths of film, adhesive formulations and tape characteristics.
Request a Quote
Contact us today for machine specifications, pricing, and customized solutions.
Precision Coating for Reliable Tape Performance
The effectiveness of the bond of a self-adhesive tape largely depends on the uniformity of the adhesive coating. An excessive amount of coating will result in increased consumption of adhesives and cost of manufacture, while a lack or unevenness of coating can cause poor bonding.
The Self-Adhesive Tape Coating Machine controls the adhesive coating along the entire width of the working area in accordance with the required coating weight. Tension control and web guiding keep the BOPP film in place during the process of coating and drying.
Working Process
The film roll made of BOPP is loaded onto the unwinding section and supplied to the machine at a constant tension. Prior to coating, the film is guided through the web guidance unit which aligns the web. The application of the required amount of adhesive to the surface of the film takes place in the coating unit.
Then the coated web is supplied to the drying zone where heat treatment is carried out with a controlled flow of air. Moisture or solvent is evaporated according to the type of adhesive used. The dried web is cooled and re-rolled into an adhesive-coated jumbo roll. It can be slit and rewound into packaging tapes.
Consistent Web Handling
BOPP film is lightweight and stretchable, and it wrinkles or moves as tension varies during manufacture. These changes can impact coating quality and jumbo-roll formation. The machine controls the web tension in a coordinated way, by means of unwinding, coating, drying and rewinding. Proper web control prevents wrinkles, edge movement and uneven winding while preserving the coated surface from production problems.
Materials and Adhesive Compatibility
The machine is primarily designed for applying adhesive coating onto BOPP film. The final coating arrangement is selected according to film characteristics, adhesive formulation, target coating weight and required production output.
Depending on the selected machine configuration, compatible adhesive systems can include:
- Water-based acrylic adhesive
- Solvent-based pressure-sensitive adhesive
- Application-specific adhesive formulations
Material and adhesive trials may be required before finalizing the coating method, drying length and operating parameters.
Efficient Drying and Adhesive Curing
BOPP film is lightweight and stretchable, and it wrinkles or moves as tension varies during manufacture. These changes can impact coating quality and jumbo-roll formation.
The machine controls the web tension in a coordinated way, by means of unwinding, coating, drying and rewinding. Proper web control prevents wrinkles, edge movement and uneven winding while preserving the coated surface from production problems.
35+ Years of Manufacturing Experience
Precision Engineering & Quality Manufacturing
Customized Machine Configurations to Your Needs
Fast and Reliable After-Sales Support
Key Machine Features
- Custom dryer length and heating options
- Stable and aligned jumbo-roll formation
- Smooth cooling before rewinding
- Accurate web-guiding arrangement
- Controlled BOPP film tension
- Adjustable temperature and airflow controls
- Multi-zone hot-air drying chamber
- Integrated adhesive coating and drying system
Finished Product Applications
- Warehouse and logistics tape
- Industrial sealing tape
- Stationery tape
- E-commerce packing tape
- Coloured adhesive tape
- Printed branding tape
- Brown packaging tape
- Transparent carton-sealing tape
Frequently Asked Questions
Yes. Working width, coating arrangement, drying length, production speed, winding system and automation level can be customized.
The drying arrangement can be designed with electric, gas, steam or thermic-fluid heating, subject to production capacity and factory infrastructure.
Yes. The adhesive application can be adjusted according to the required coating weight, adhesive formulation and intended tape performance.
The coating machine produces adhesive-coated jumbo rolls. A separate tape slitting and rewinding machine converts these jumbo rolls into finished tape rolls of the required width and length.
The machine is primarily designed for BOPP film used in the production of transparent, brown, coloured and printed packaging tapes.
It is an industrial machine that applies pressure-sensitive adhesive to film or another compatible substrate, dries the coating and rewinds the material into jumbo rolls for further conversion.
