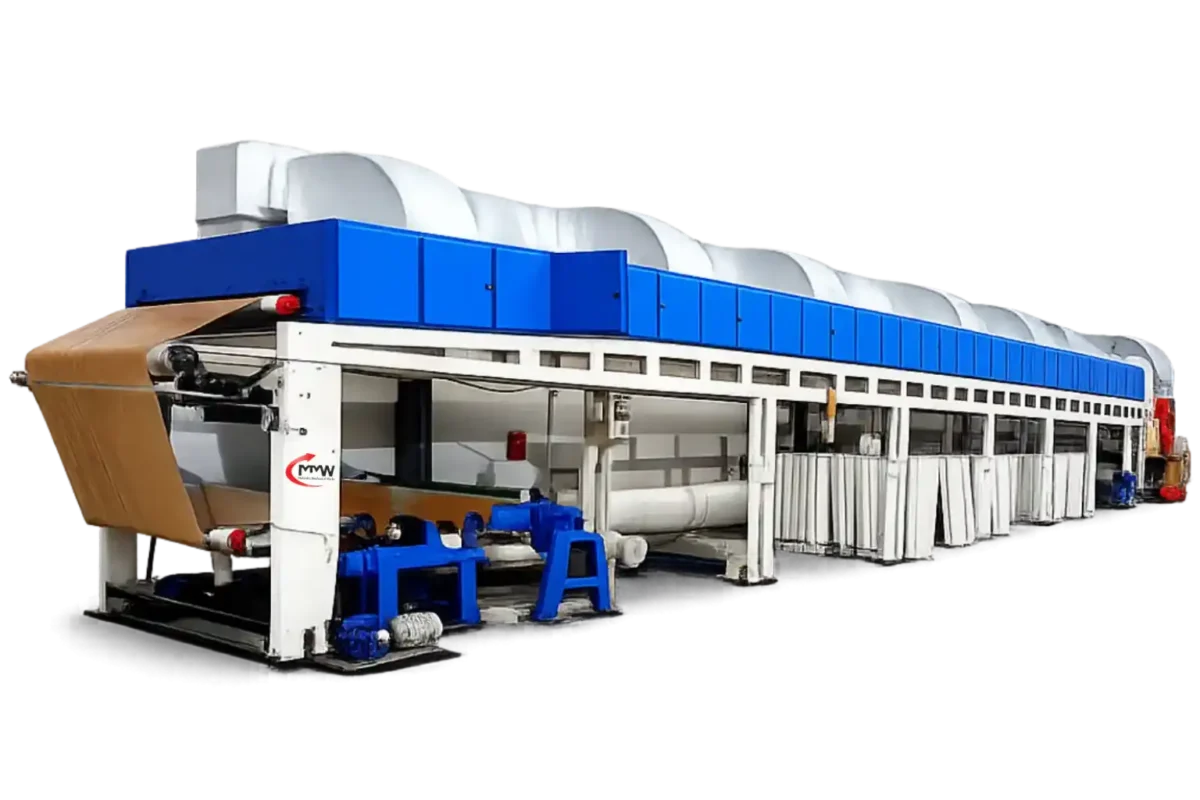

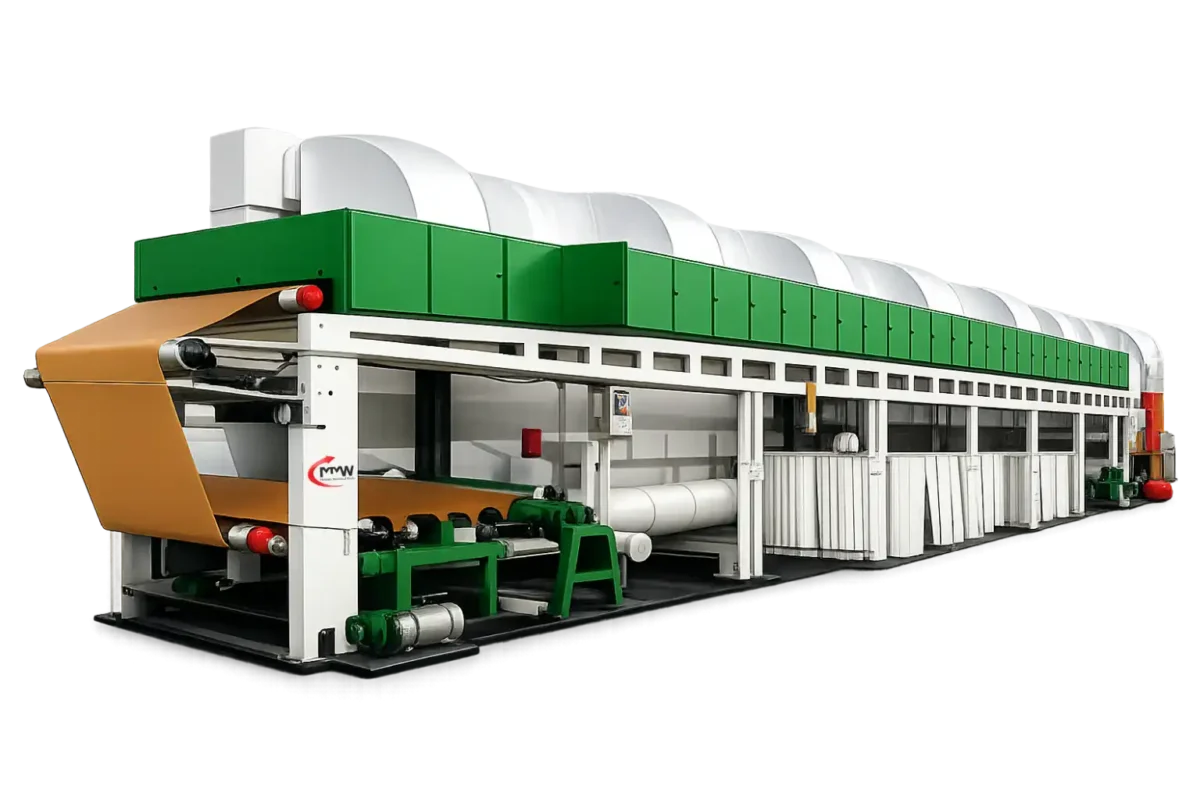

Fully Automatic Self Adhesive BOPP Tape Coating Machine
BOPP Self Adhesive Tape Making Machine is a complete line for application of a precisely controlled layer of adhesive to BOPP films followed by formation of an equally coated jumbo roll.
This plant is meant for industrial tape manufacturers and has the ability to control constant movement of the film and even distribution of adhesive during the entire process of manufacture. Tension control, proper web guiding, and fast drying help in producing clear, brown, coloured and printed packaging tapes having good adhesive properties.
Request a Quote
Contact us today for machine specifications, pricing, and customized solutions.
Complete BOPP Film Coating Plant Machine
A reliable tape needs more than just adding gums onto film. This involves making sure that the coating weight is consistent throughout the web, the film is being moved without elongation or deviation, and the adhesive should be dried up before recoiling.
Our BOPP Film Coating Plant Machine is designed with these vital manufacturing concerns in mind. Our untreated or treated BOPP film is fed in from the unwinding end towards the coating machine in a controlled tensioned state. The chosen adhesive will be evenly applied on the film which is then carried in the multiple heating zones.
The film is then cooled down and rewound into properly rolled adhesive jumbo rolls for further processing into packing tapes in another machine.
Engineered for Consistent Adhesive Performance
Quality of the packing tape is influenced by the quality of the adhesive and the process of drying. Badly applied coating may lead to poor adhesion, transfer of adhesive, bad aging properties or inconsistency from roll to roll.
This machine provides for consistent tension in the web, application of the coating and drying conditions during the entire process. This allows for consistent quality of the tape and reduction of waste and defects.
Integrated Production Process
Controlled Film Unwinding
The unwinding section feeds BOPP film into the production line at a stable rate. Tension control protects the film against wrinkles, stretching and irregular movement.
Precision Adhesive Coating
The coating system distributes the required quantity of adhesive uniformly across the film width. Coating parameters can be adjusted according to the adhesive formulation and intended tape performance.
Multi-Zone Drying
The coated film passes through a controlled hot-air drying chamber. Proper temperature and airflow management support effective moisture or solvent removal without damaging the BOPP substrate.
Cooling and Rewinding
After drying, the coated film is cooled before rewinding. Consistent winding tension helps produce firm, aligned jumbo rolls suitable for further tape conversion.
Available Heating Systems
The dryer can be configured according to the customer’s factory infrastructure and operating requirements. Available heating options may include:
Electric heating
Gas-fired heating
Steam heating
Thermic-fluid heating
Final heating and coating configurations are recommended after evaluating the adhesive type, film width, required coating weight and expected production output.
Key Machine Features
- Centralized control for production monitoring
- Smooth jumbo-roll formation
- Adjustable coating and drying parameters
- Precision web-guiding arrangement
- Efficient multi-zone hot-air drying system
- Controlled unwinding and rewinding tension
- Stable handling of lightweight BOPP film
- Uniform adhesive coating across the working width
Tape Products Manufactured
- Warehouse and logistics tape
- Industrial sealing tape
- Stationery tape
- E-commerce packing tape
- Coloured adhesive tape
- Printed branding tape
- Brown packaging tape
- Transparent carton-sealing tape
Frequently Asked Questions
The primary raw materials include BOPP Film, Water-Based Adhesive or Solvent-Based Adhesive, Paper Core, and Packaging Materials for finished tape rolls.
A High-Speed BOPP Tape Plant enables manufacturers to increase production capacity, improve product quality, reduce manufacturing costs, and meet growing market demand for adhesive packaging tapes while achieving faster return on investment.
The tapes are widely used in:
- Packaging Industry
- Logistics & Warehousing
- E-Commerce
- FMCG Sector
- Automotive Industry
- Export Packaging
- Manufacturing Facilities
The machine can be customized with Electric Heating, Gas Heating, or Steam Heating systems based on factory infrastructure and production preferences.
Key advantages include:
- Higher production output
- Consistent coating quality
- Reduced labor costs
- Lower material wastage
- Better energy efficiency
- Improved product consistency
Yes. The machine features automatic tension control, PLC-based operation, Touch Screen HMI, automatic web guiding systems, and automated winding functions for efficient production.
Production capacity depends on machine configuration, coating width, adhesive type, and operating speed. Customized models are available for both medium-scale and high-volume manufacturing plants.
Depending on production requirements, the machine can be supplied with Commabar Coating, Gravure Coating, or other customized coating systems to ensure precise adhesive application.
A Fully Automatic Self Adhesive BOPP Tape Coating Machine is an industrial system used to apply adhesive coating onto BOPP film for the production of packaging tapes, carton sealing tapes, printed tapes, and other self-adhesive products.
