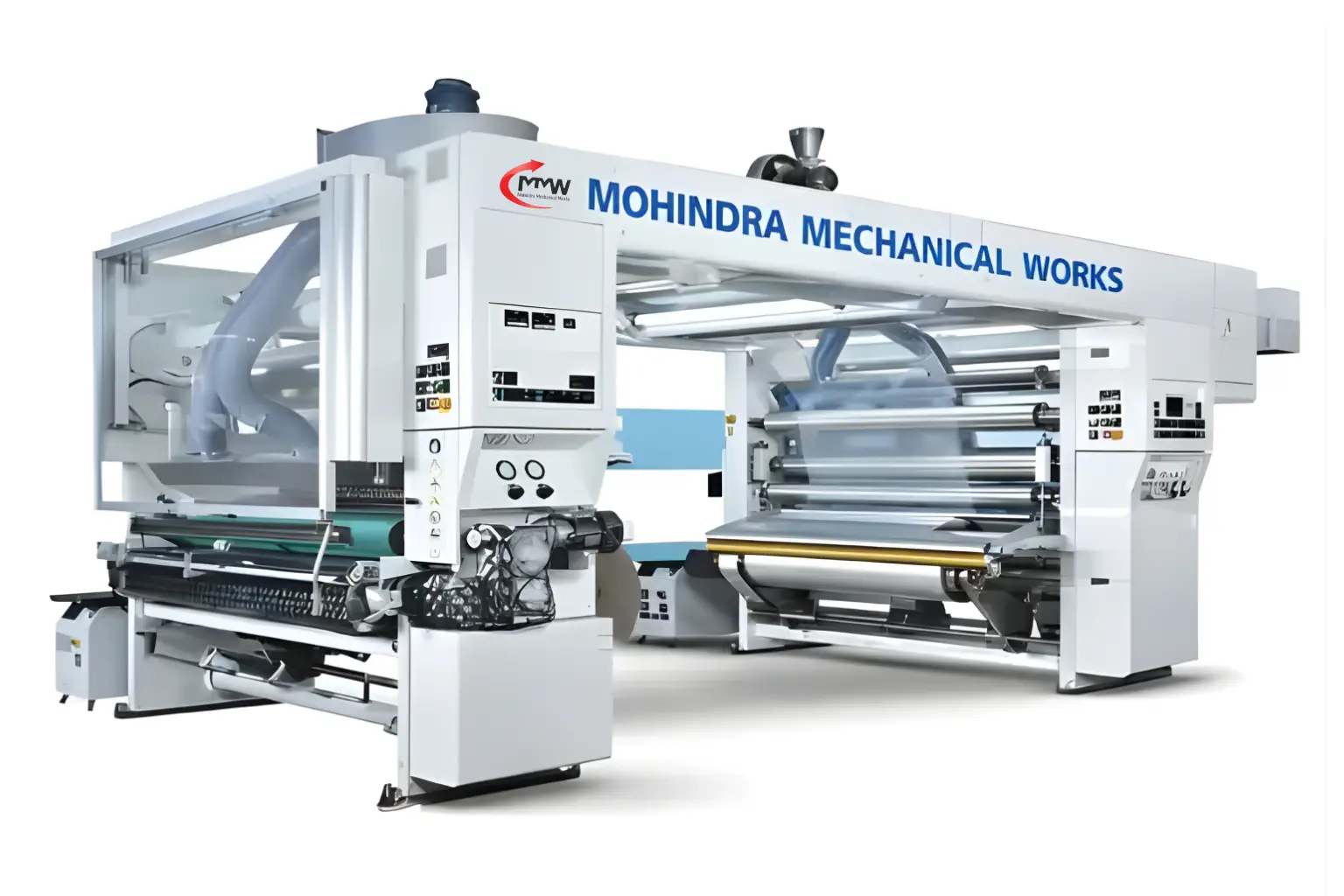

350 MTR/MIN - Solventless Lamination Machine
High-Speed Solvent-Free Lamination for Flexible Packaging
Our Solventless Lamination Machine is designed for high-speed flexible packaging production with speeds of up to 350 meters per minute. It uses precisely metered solvent-free adhesive to deliver uniform and reliable bonding between compatible flexible substrates.
With stable web handling, controlled tension and precision adhesive application, the machine ensures smooth lamination and consistent roll quality. It is suitable for film-to-film, film-to-foil and metallized film laminates used across a wide range of flexible packaging applications.
Its solvent-free process eliminates the need for conventional solvent drying, making production faster, cleaner and more energy-efficient.
Request a Quote
Contact us today for machine specifications, pricing, and customized solutions.
Engineered for High-Speed Lamination and Process Control
At production speeds of up to 350 MTR/MIN, it is important to have precise control of the web tension, adhesive coating and nip pressure. The machine is designed to ensure a constant flow of material through the coating and laminating sections, decreasing the possibility of creases, web deviation and irregular bonding.
A precision adhesive metering and coating device dispenses a controlled amount of solventless glue onto the substrate. The coated web is then combined with the secondary substrate at the laminating section under controlled pressure and process conditions.
Independent control of critical operating parameters allows the machine to meet different films, laminating structures and production requirements. The final laminate is rewound under controlled tension to generate compact and consistent rolls for future converting procedures.
Designed for Flexible Film-to-Film and Foil Lamination
The Solventless Lamination Machine can turn various types of flexible packaging substrates into multi-layer laminate structures. Depending on the specified machine configuration, it can process compatible materials such as BOPP, PET, CPP, PE, metallized films and aluminium foil.
In operation the leading web goes through the adhesive application device where the needed amount of solventless glue is dosed and delivered to the substrate with high precision. The coated material is joined with the secondary web through the laminating nip and subsequently rewound.
This technology is well established for the production of laminated structures needed in food packaging, snack packaging, confectionery packs, personal care packaging and other flexible packaging applications.
Why Solventless Lamination for Flexible Packaging?
Solventless lamination uses 100% solids adhesive systems that do not require solvent evaporation during the laminating process. This removes the need for the large drying section normally associated with solvent-based adhesive coating and can reduce energy requirements related to drying.
Precise adhesive metering is particularly important because solventless adhesives are generally applied at relatively low coating weights. Controlled temperature, mixing ratio, coating conditions, nip pressure and web tension contribute to uniform adhesive transfer and reliable bonding.
For flexible packaging converters handling continuous production, the combination of high operating speed, compact process design and controlled adhesive application makes solventless lamination an effective solution for producing multi-layer packaging laminates.
35+ Years of Manufacturing Experience
Precision Engineering & Quality Manufacturing
Customized Machine Configurations to Your Needs
Fast and Reliable After-Sales Support
Packaging Applications
- Personal & Home-Care Packaging: Suitable for laminated structures used for detergents, hygiene products and various consumer-product packs.
- Film-to-Foil Structures: Can be configured for compatible aluminium-foil laminate structures used in selected flexible packaging applications.
- Film-to-Film Laminates: Bonds compatible combinations of PET, BOPP, CPP, PE and other flexible films.
- Metallized Film Laminates: Processes compatible metallized substrates used where enhanced appearance or barrier performance is required.
- Printed Flexible Packaging: Laminates printed films with compatible secondary substrates to protect print and create functional multilayer structures.
- Flexible Pouches: Suitable for laminate structures subsequently converted into stand-up, centre-seal, three-side-seal and other pouch formats.
- Flexible Packaging Rolls: Produces multilayer laminates for pouches, wrappers and other converted packaging formats.
Key Features
- Uniform Rewinding: Controlled rewind tension helps produce straight, compact and consistently wound finished rolls.
- Temperature-Controlled Adhesive System: Maintains appropriate process temperatures in relevant adhesive metering and coating sections.
- Accurate Lamination Nip Control: Controlled nip conditions promote consistent contact and bonding between the two substrates.
- Controlled Web Tension: Maintains stable substrate movement from unwinding through lamination to final rewinding.
- Precision Adhesive Metering: Controlled metering and transfer help maintain uniform adhesive application across the working width.
- Solventless Adhesive Application: Designed for solvent-free adhesive systems, eliminating the solvent drying stage from the lamination process.
- High Production Speed: Operates at speeds of up to 350 MTR/MIN for efficient commercial flexible-packaging production.
Frequently Asked Questions
Yes. Compatible printed flexible films can be laminated with a suitable secondary substrate, making the machine suitable for many flexible packaging applications.
Key advantages include high production speeds, no solvent evaporation stage, lower drying-energy requirements, compact process design and precise low-coat-weight adhesive application.
The machine can be configured with controlled web-tension systems for stable unwinding, laminating and rewinding. The exact automation level depends on the selected machine specification.
The machine is intended for compatible solventless laminating adhesives, commonly supplied as two-component systems. The appropriate adhesive and process conditions should be selected according to the substrate combination and end-use requirements.
Solventless adhesives do not rely on solvent evaporation, so the process does not require the conventional drying oven used for evaporating solvents in solvent-based lamination.
Depending on the configuration and adhesive system, the machine can process compatible flexible substrates such as PET, BOPP, CPP, PE, metallized films and aluminium foil.
This machine is designed for an operating speed of up to 350 meters per minute, subject to the selected substrate, adhesive, job conditions and machine configuration.
