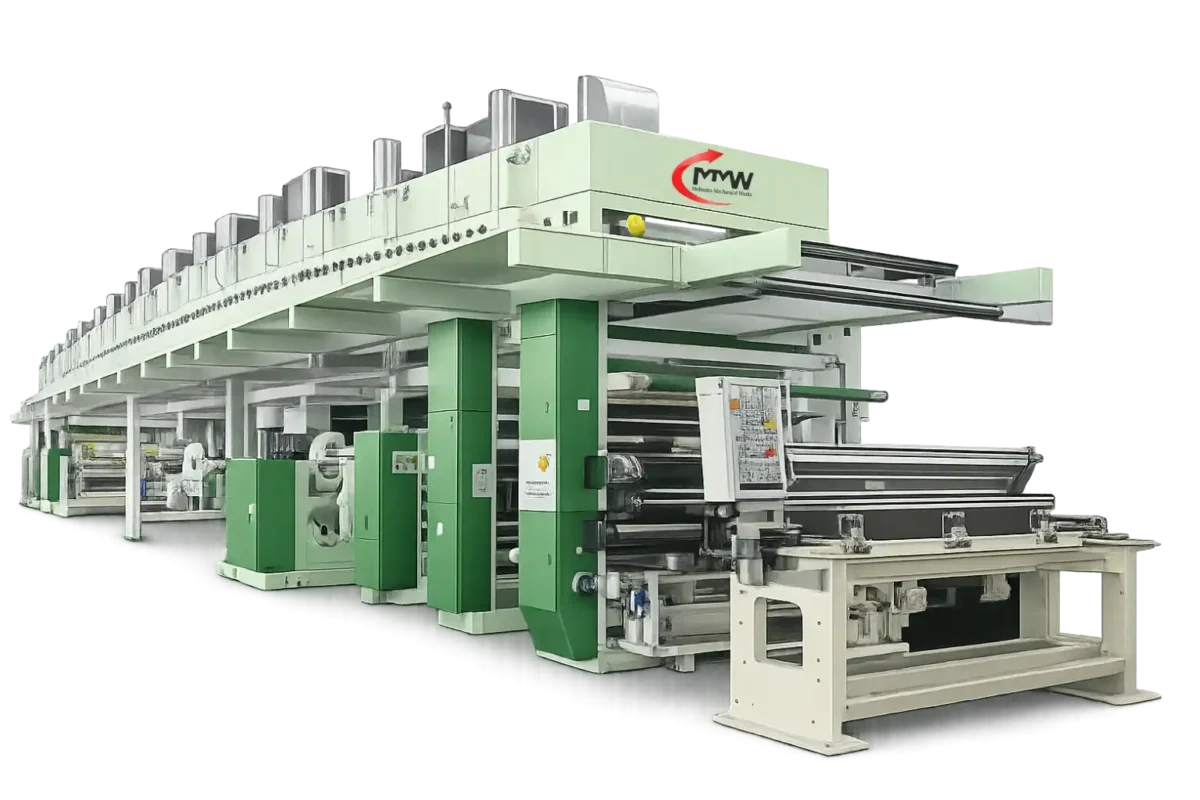

PVC Film Coating Production Line
Industrial Machinery for High-Precision Surface Coating
This production line is designed for the continuous application of functional coatings onto PVC (Polyvinyl Chloride) films. The machine handles various coating mediums, including acrylic adhesives, top-coats, and protective lacquers. Engineered for industrial environments, it ensures uniform chemical deposition across the entire web width while maintaining strict temperature controls to prevent film deformation or shrinkage.
Request a Quote
Contact us today to learn more, book a demonstration, or simply connect with our experts.
Machine Flow & Structural Components
- Unwind Station: Dual-shaft or turret-type unwinding system equipped with an automatic tension controller and web guider to ensure straight film feeding.
- Coating Head Assembly: Built with a high-precision Comma Doctor Blade or Gravure roller mechanism. Includes micrometer adjustments for accurate coating thickness control.
- Drying Tunnel: A multi-zone insulated oven with independent temperature controls in each zone. Utilizes high-efficiency air circulation to dry the coating without overheating the PVC substrate.
- Cooling Section: Equipped with water-cooled chrome rollers to rapidly reduce the film temperature before winding.
- Rewind Station: Surface or center-winding system with taper tension control to produce tightly packed finished rolls without telescoping.
Business Benefits
Manufacturers using this machine can achieve higher product value, improved production consistency, and greater operational efficiency. Its flexible design allows businesses to cater to multiple industries while maintaining strict quality standards and competitive production costs.
Technical Specifications
|
Category |
Specification |
|---|---|
|
Substrate Material |
Rigid and Flexible PVC Film |
|
Film Thickness |
40 to 300 Microns |
|
Coating Width |
1000 mm – 1600 mm |
|
Mechanical Speed |
30 – 120 meters / minute |
|
Coating Method |
Comma Roll / Direct Gravure / Knife Coating |
|
Heating Source |
Hot Air / Thermic Fluid / Electrical |
|
Drive System |
Synchronized AC Servo Motors with PLC |
Suitable End Products
- Surgical Fixation Tape
- Microporous Medical Tape
- PE Adhesive Medical Tape
- Dressing Retention Tape
- IV Cannula Fixing Tape
- First Aid Tape
- Hospital Utility Tape
- Skin-Friendly Medical Tape
Industrial Benefits
- Manufacturing of breathable surgical tapes
- Higher production output
- Reduced adhesive consumption
- Consistent roll quality
- Lower operating costs
- Improved product reliability
- Faster order fulfillment
- Minimal material wastage
