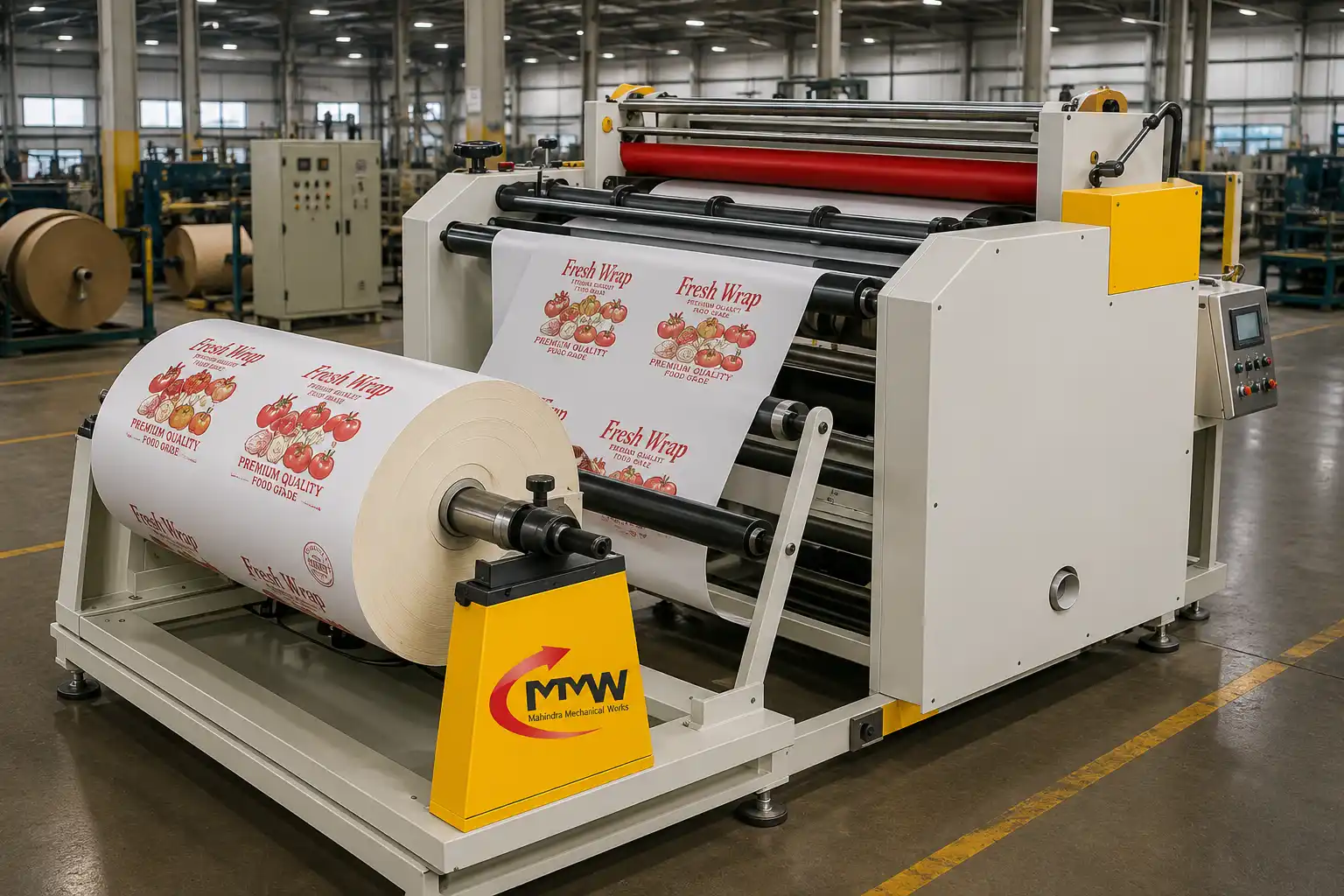

Paper Roll Printing with Cutting Machine
From Raw Paper Roll to Printed & Finished Sizes in a Single Pass
Why waste time, money, and labor moving paper rolls from a printing press to a separate cutting machine? Our Paper Roll Printing with Cutting Machine combines high-definition printing and high-precision cutting into one single, powerful, and seamless operation.
You simply load a plain, blank paper roll on one end. The machine automatically prints your custom logos, designs, or text, instantly dries the ink, and cuts the paper to your exact size requirements—all in a single pass. It is the ultimate production asset for manufacturing paper bags, food trays, medical wraps, paper cups, and customized retail packaging.
The Step-by-Step Inline Process
- Unwinding: The heavy master paper roll is smoothly fed into the machine via an automatic pneumatic tension feeder.
- High-Definition Printing: The paper passes through advanced flexographic printing stations where vibrant brand logos or patterns are stamped onto the surface.
- Flash Drying: The printed paper passes through an enclosed heating zone to set the ink permanently within a split second.
- Precision Cutting: The smart sensor aligns the printed pattern, and the heavy-duty mechanical cutter cuts the paper instantly into sheets or strips, dropping them neatly onto a collection tray.
What Makes This Machine Different?
- Continuous Single-Pass Efficiency: By combining printing and cutting in one line, you eliminate intermediate roll winding, transportation, and setup times. Your production speed doubles instantly.
- Flawless Print-to-Cut Registration: The machine features advanced electronic sensors (photocells) that talk to each other. The cutter knows exactly where the design ends and cuts with 0.1mm accuracy, ensuring your logos are never cut in half.
- Eco-Friendly Inline Drying: Equipped with automatic hot-air drying tunnels that dry the fresh food-grade or water-based ink instantly at high speeds before the cutting blade touches the paper.
- Heavy-Duty Shearing & Slitting Blades: Features premium-grade alloy steel blades that can perform both cross-cutting (shearing into sheets) or longitudinal slitting (cutting into narrower strips) depending on your needs.
- Gentle Paper Path Control: Uses smart tension-leveling rollers that keep the paper perfectly flat and stable, preventing any ink smudging, paper tearing, or wrinkling.
How This Machine Multiplies Your Factory Profits
- Massive Reduction in Factory Waste: Because the printing and cutting are electronically synchronized, there are zero alignment mistakes. This brings your material wastage down to almost 0%.
- Saves Huge Factory Space: Instead of blocking your floor with two large independent machines, this compact inline system takes up half the space, leaving more room for raw materials.
- Unbeatable Labor Savings: What used to require a printing team and a cutting team can now be managed effortlessly by a single machine operator using the central touch panel.
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Machine Functions |
Inline Printing + Precision Sheet Cutting / Slitting |
|
Suitable Materials |
Kraft Paper, Poster Paper, Chromo Paper, Laminated Paper |
|
Material Thickness (GSM) |
40 GSM to 300 GSM |
|
Printing Colors Available |
1 Color, 2 Colors, 4 Colors, or 6 Colors (Customizable) |
|
Ink Compatibility |
Water-Based Eco Ink / Flexo Solvent Ink |
|
Cutting Mechanism |
High-Speed Pneumatic Shearing Blade / Rotary Slitters |
|
Maximum Web Width |
600 mm / 1000 mm / 1300 mm |
|
Cutting Length Accuracy |
0.1 mm (Ultra-precise Registration) |
|
Production Speed |
80 to 180 Cuts/Meter per minute |
