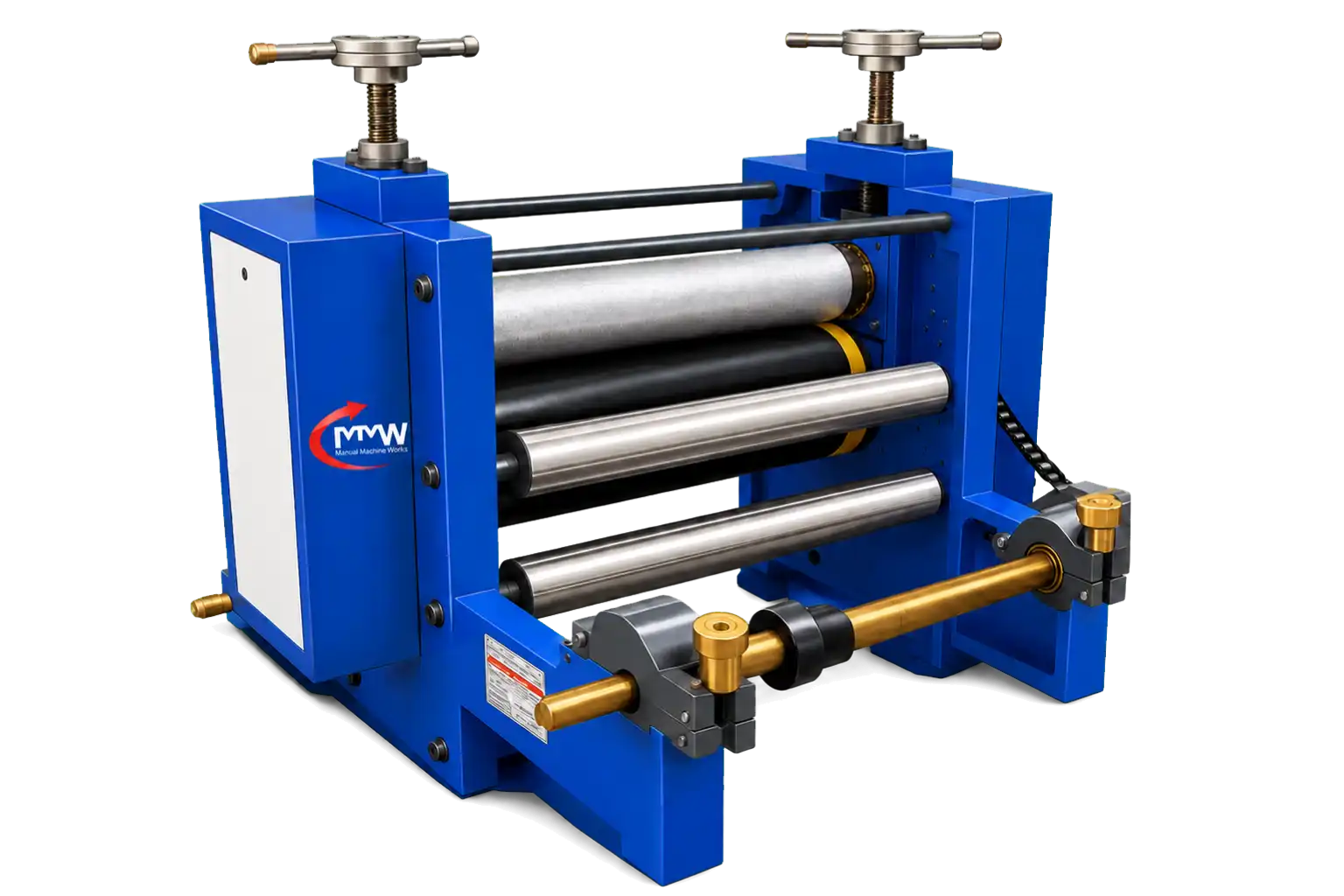

Roll-to-Roll Engraving Machine
Designed for Continuous High-Speed Embossing and Uniform Surface Pattern Formation on Roll Materials
Our Roll-to-Roll Engraving Machine produces uniform embossed textures and decorative patterns on paper, laminated paper, foil and compatible roll materials on a continuous basis. Its regulated web feeding, tension management and precision roller system provides uniform impressions across the full working width making it appropriate for high-volume paper converting, packaging and specialty material manufacturing.
Request a Quote
Contact us today for machine specifications, pricing, and customized solutions.
Engineered for Continuous Roll Material Embossing
More than pressure between two rollers is required to produce an even engraved pattern on roll material. The variation of web tension, material alignment, or roller pressure can lead to variations in pattern depth, wrinkles and inconsistent surface finish. During long and high-speed production runs these problems become more apparent.
The Mohindra Mechanical Works Roll-to-Roll Engraving Machine is designed to keep the movement of material in control from unwinding to rewinding. The substrate is continually fed through precision embossing rollers, which transfer the specified design without interrupting the flow of production.
Uniform roller pressure and stable web tension assist retain pattern uniformity throughout the roll. It is able to take care of different roll diameters, material widths and surface designs and is appropriate for decorative paper, packaging substrates, specialty films and industrial laminates.
Designed for Consistent Pattern Depth and Web Control
Roll-fed materials can stretch, move or develop wrinkles when tension is not correctly regulated. Unequal roller pressure can also cause a darker or deeper impression on one side of the web. This machine solves these practical production challenges through a well-balanced feed path, adjustable tension and precisely aligned embossing rollers.

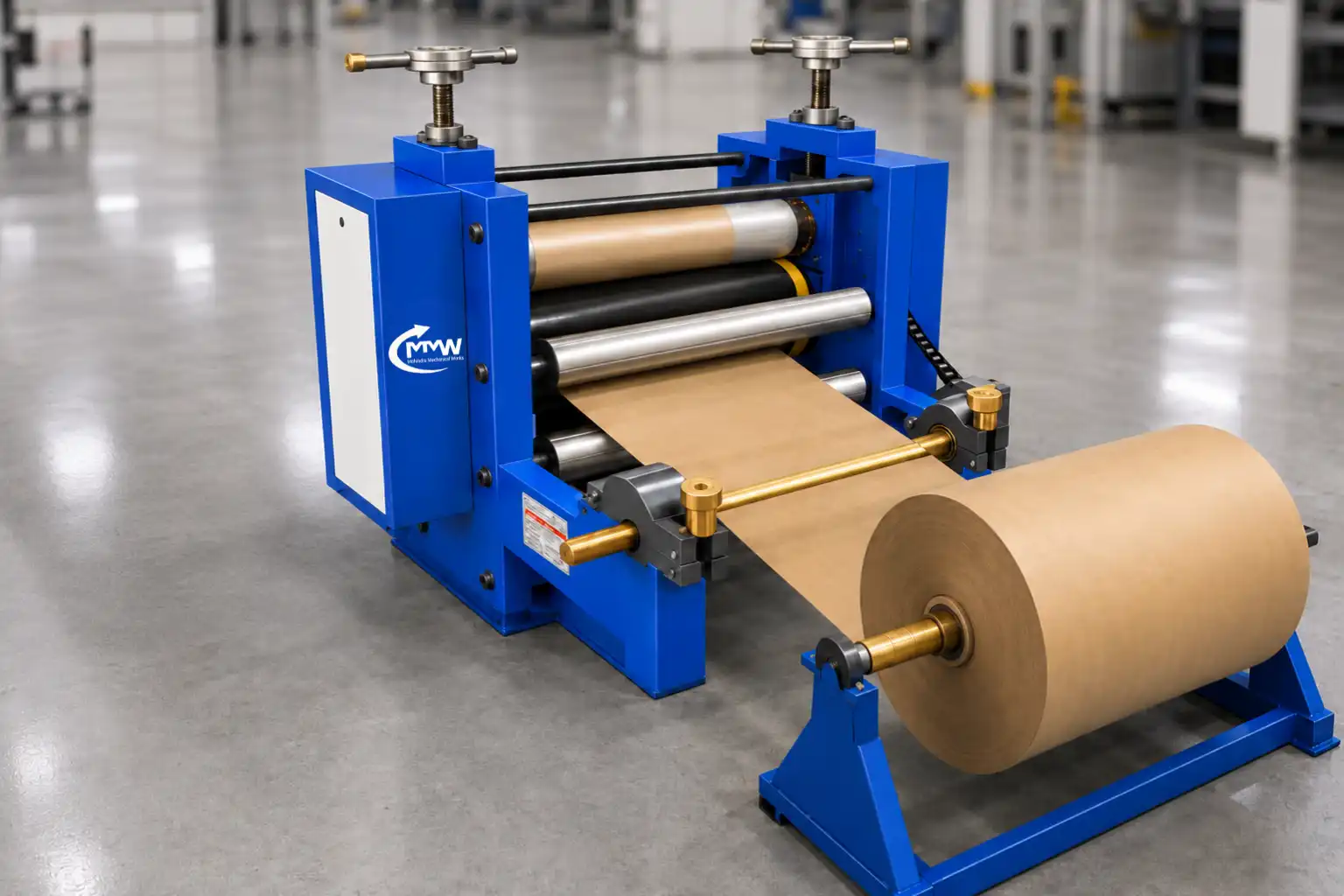

The material is fed into the unwinding section and through web-alignment and tension-control components. It then goes to the engraving section where the matched rollers create the required surface pattern. The treated web is rewound under controlled tension to produce a compact and evenly finished roll.
The Roll-to-Roll Embossing Machine can be modified according to material thickness, required embossing depth, roll width and production speed. For substrates that require more processing accuracy, optional roller heating, web guiding and automated tension controls are available.
Why Roll Materials Need Controlled Engraving
Although a continuous pattern looks very straightforward, its effectiveness will depend largely on how uniformly the web is fed through the machine. Tension variations will lead to stretching of the substrate, deformation of the repeat pattern or even wrinkling. Misalignment of rollers will result in inconsistent depth of embossing.
A well-designed Web Embossing Machine has the ability to maintain constant tension during the entire process from unrolling to embossing and reeling. Thus, the engraved roller will be constantly in contact with the substrate creating the perfect surface pattern.
Mohindra Mechanical Works conducts an analysis of the substrate, roll specifications, required texture and output before finalizing the design of the machine.
35+ Years of Manufacturing Experience
Precision Engineering & Quality Manufacturing
Customized Machine Configurations to Your Needs
Fast and Reliable After-Sales Support
Product Applications
- Specialty Industrial Materials: Applies functional textures to suitable technical papers, coated substrates and flexible materials.
- Gift-Wrapping Paper: Produces premium textured wrapping materials with consistent roll-to-roll finishing.
- Bookbinding Materials: Processes cover paper and compatible laminated substrates used for diaries, notebooks and books.
- Wallpaper and Interior Media: Creates repetitive surface patterns on wallpaper, decorative sheets and interior finishing materials.
- Packaging Materials: Adds functional or decorative impressions to paper, foil and compatible laminated packaging rolls.
- Decorative Paper Rolls: Produces continuous textures and ornamental patterns for wrapping, stationery and specialty papers.
Key Features
- Interchangeable Engraved Rollers: Supports multiple patterns and surface finishes using application-specific rollers.
- Variable Production Speed: Enables suitable operating speeds to be selected for different substrates.
- Adjustable Roller Pressure: Allows embossing depth to be controlled according to material and design requirements.
- Accurate Web Alignment: Keeps the substrate properly positioned while it passes through the embossing section.
- Uniform Pattern Formation: Precision rollers maintain consistent design depth across the working width.
- Continuous Roll-to-Roll Operation: Supports uninterrupted processing of web materials for efficient bulk production.
Frequently Asked Questions
It can process pre-printed rolls for continuous textures. If the pattern must align with specific printed artwork, a Registered Embossing Machine would be more appropriate.
Optional roller heating can be provided for substrates requiring heat-assisted pattern formation or improved embossing definition.
Yes. Roller pressure can be adjusted to achieve the required pattern depth while considering material thickness and surface characteristics.
Yes. The machine includes a suitable tension-control arrangement. Automatic tension control can also be provided according to speed and material requirements.
Yes. Different engraved rollers can be installed to create decorative, geometric, fine-grain, linen, leather-like or customized surface patterns.
Can the machine produce different patterns?
The machine can be configured for paper, coated paper, laminated paper, aluminium foil and selected flexible materials. Compatibility should be confirmed through material specifications or production trials.
Both terms are commonly used for this application. Engraving refers to the design created on the roller, while embossing describes the pattern formed on the processed material.
It is a web-processing machine that continuously transfers an engraved or embossed pattern onto material supplied and collected in roll form.
