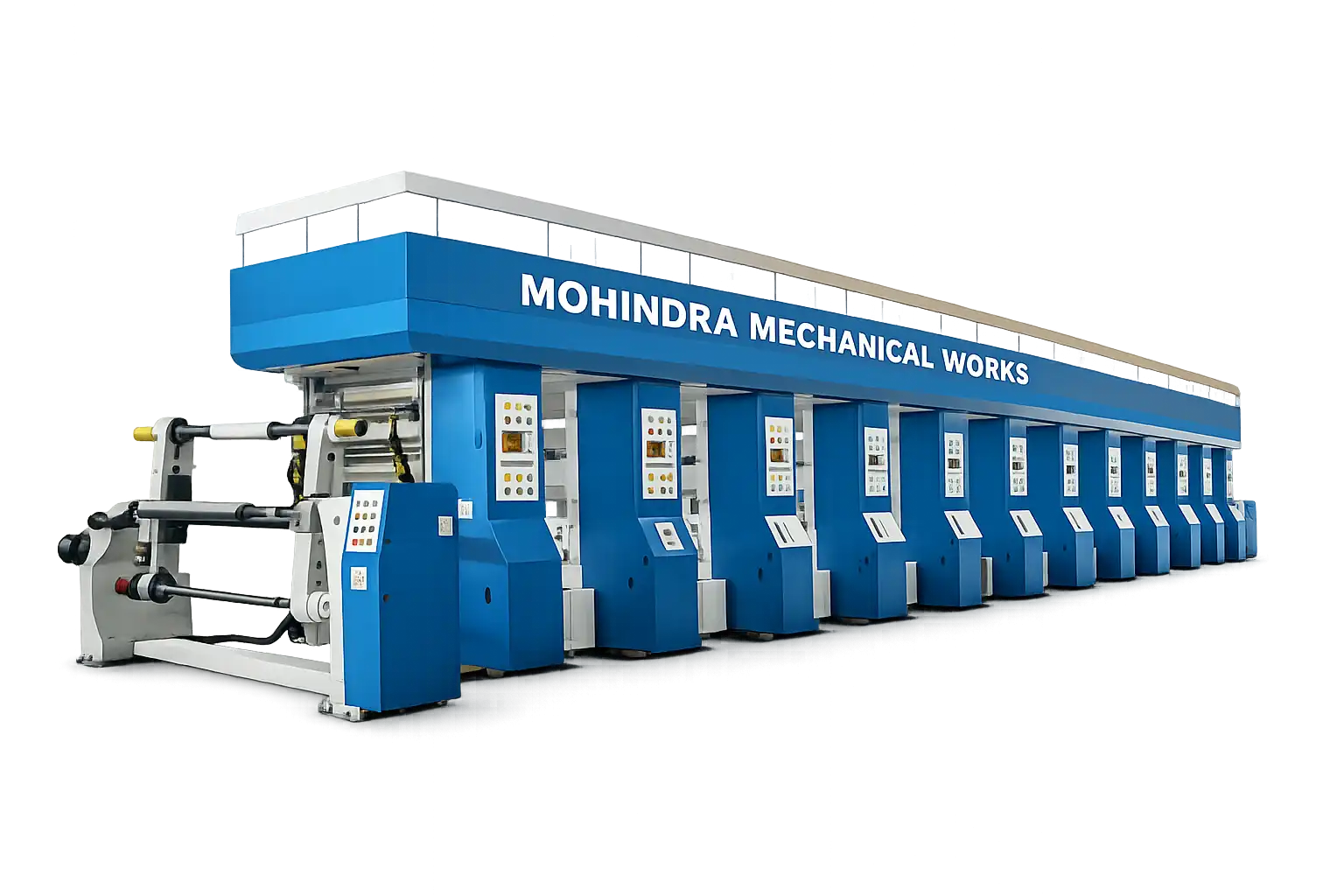

MLS Rotogravure Printing Machine
MLS Rotogravure Printing Machine is a high-performance printing solution specially designed for flexible packaging and industrial printing applications. The machine is built with advanced technology to deliver precise color registration, sharp print quality, and stable high-speed operation. Its strong mechanical structure and efficient control system ensure smooth performance even during long production runs.
This machine is widely used by packaging manufacturers who require consistent printing results on various substrates such as plastic films, laminated materials, and other flexible packaging rolls. The MLS Rotogravure Printing Machine helps improve production efficiency while maintaining excellent print clarity and uniform ink distribution.
With its user-friendly operation, durable components, and low maintenance requirements, the machine becomes a reliable choice for modern packaging and printing industries looking for productivity, accuracy, and long-term performance.
- Durable industrial construction
- Efficient hot air drying system
- Stable web tension control
- Accurate color registration
- High-speed multi-color printing capability
- Strong shaft-based roll support system
- Labels and industrial packaging
- Decorative film printing
- Pharmaceutical packaging materials
- Food packaging films
- Flexible packaging printing
MLS Rotogravure Printing Machine – Technical Specification
Category | Specification |
|---|---|
Machine Type | MLS Rotogravure Printing Machine |
Machine Structure | Modular Linear Structure (MLS Design) |
Printing Method | Rotogravure Cylinder Printing |
Automation Grade | Fully Automatic Industrial Machine |
Drive System | Line Shaft Drive System |
Number of Colors | 4 – 10 Color Configuration |
Maximum Mechanical Speed | Up to 220 m/min |
Maximum Printing Speed | 120 – 160 m/min |
Printing Width | 600 / 800 / 1000 / 1200 mm |
Maximum Web Width | 650 – 1250 mm |
Unwind Stand Type | Pneumatic Shaft Unwind |
Maximum Unwind Roll Diameter | 700 mm |
Maximum Rewind Roll Diameter | 700 mm |
Core Diameter | 3 inch / 6 inch |
Cylinder Diameter Range | 150 – 280 mm |
Printing Repeat Length | 450 – 850 mm |
Substrate Thickness | 15 – 70 micron |
Drying System | Electric / Gas Hot Air Drying Oven |
Tension Control System | Magnetic Powder Brake System |
Doctor Blade Assembly | Pneumatic Chamber Doctor Blade |
Control System | PLC + HMI Touch Screen |
Power Requirement | 415V, 50Hz, 3 Phase |
Ink Circulation System | Automatic Ink Pump System |
Total Power Consumption | 28 – 50 KW (Approx.) |
