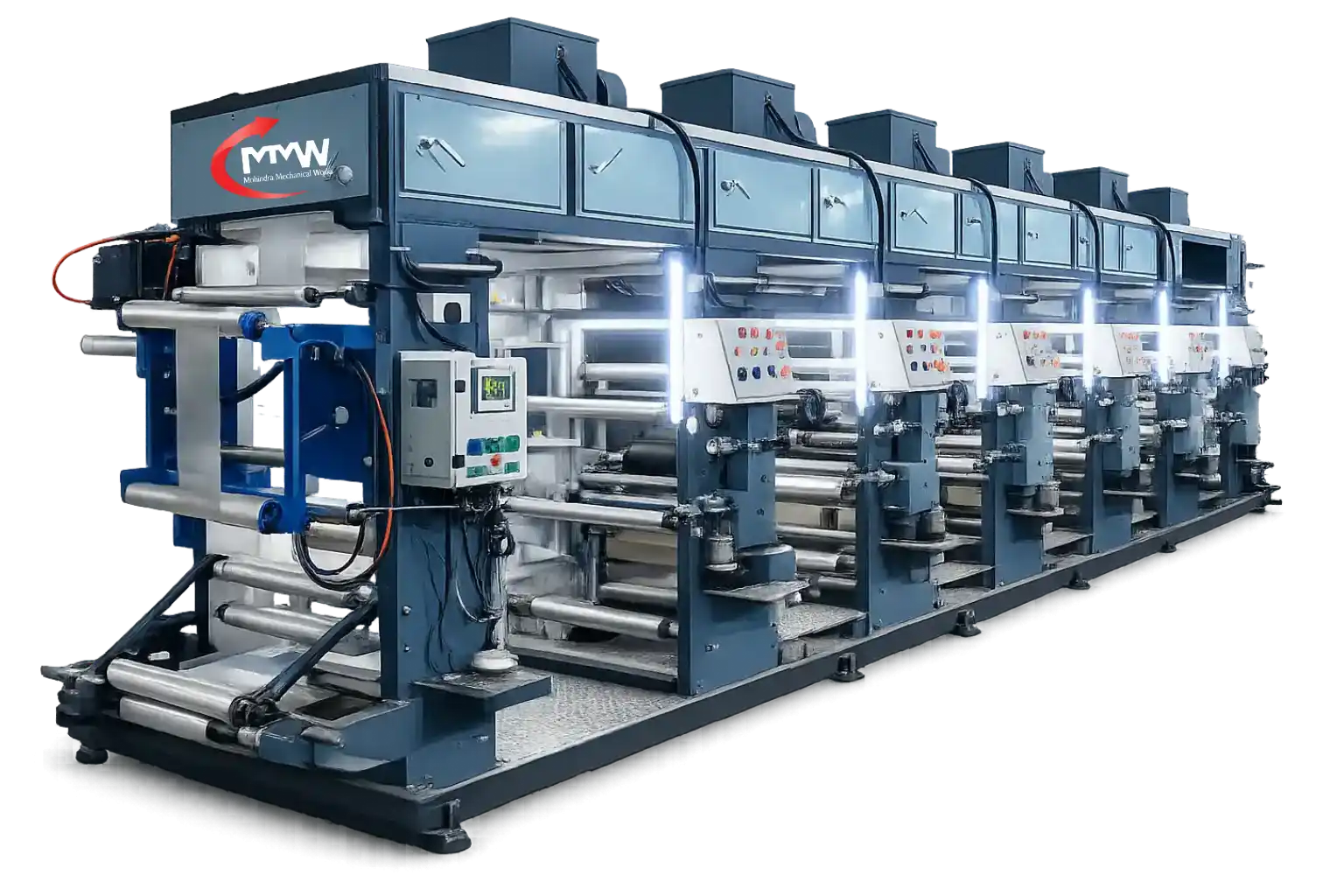

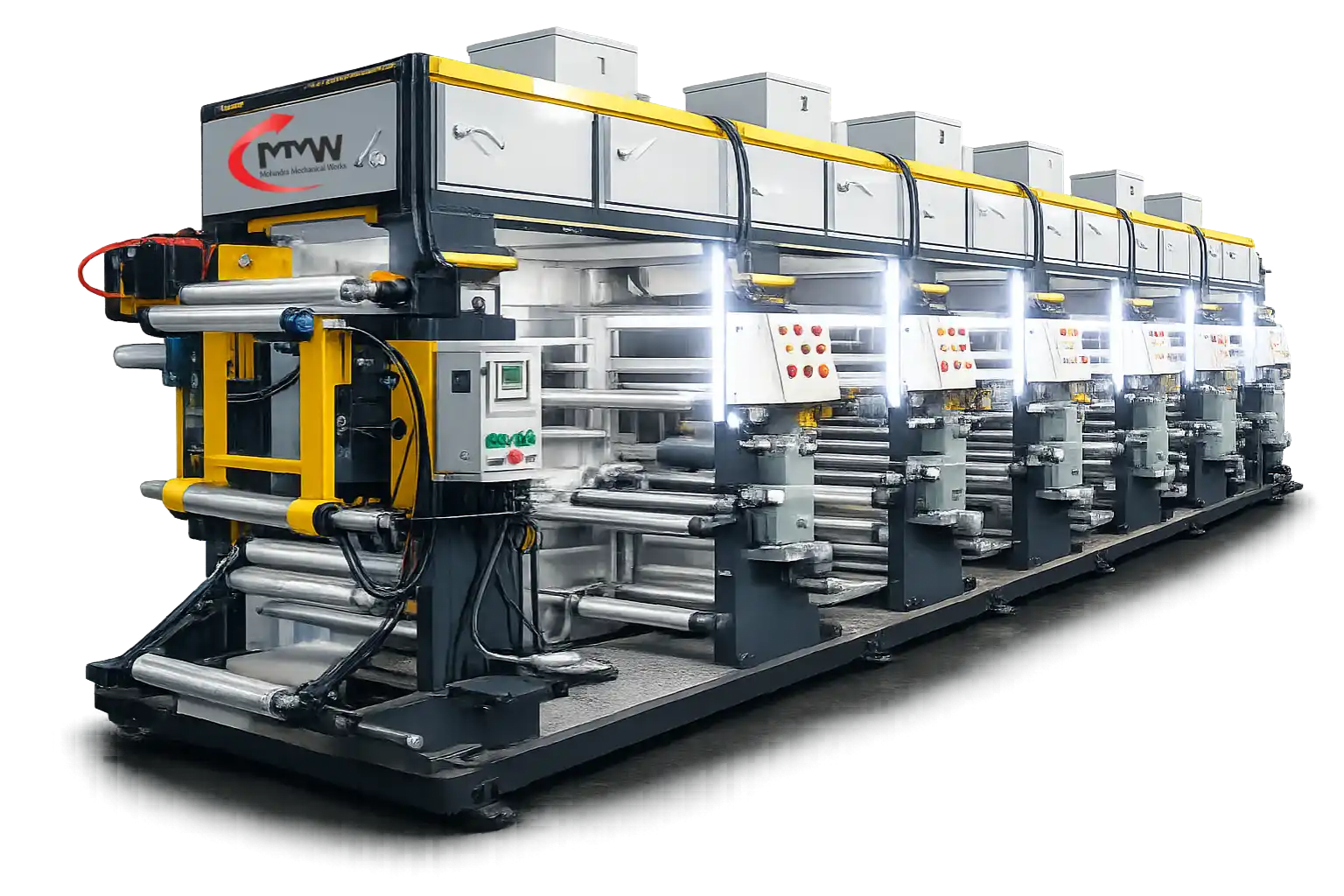

Blister Foil Printing Machine
High-Definition Printing for Blister Packaging Foils
Blister Foil Printing Machine is designed for high-quality printing on aluminium foils that are used as lidding materials in blister packaging. This printer enables precise printing of product names, logo, identifying marks, symbols, instructions and custom designs on continuous aluminium foil rolls.
The Blister Foil Printer ensures coordination between the printing cylinder and the moving foil web in order to ensure consistent print pattern from multiple print runs. The feeding and rewinding processes are controlled in order to facilitate smooth passage of the thin foil through the printing machine without disturbing it. It comes in various printing configurations and is suitable for use by packaging converters.
Request a Quote
Contact us today for machine specifications, pricing, and customized solutions.
Precision Printing for Blister Lidding Applications
It is essential that the printing process remains consistent because artwork is continuously printed depending on the packaging configuration. This printing process is intended to ensure uniform cylinder contact and ink deposition so as to be able to effectively print out fine lines and artwork graphics. With good repeat control, the printing process can effectively ensure that the spacing of artwork is consistently printed in the direction of the foil movement.
For multi-coloured designs, it is possible to have registration control of different colors so as to achieve proper alignment. This helps to avoid unnecessary changes during the printing process at the beginning and end of long production rolls.
Smooth Web Handling for Delicate Foil Materials
Thin blister foil can be sensitive to sudden tension changes, uneven pulling forces and lateral movement during printing. The machine therefore manages foil movement through separate unwinding, guiding, printing and rewinding stages. Controlled web tension keeps the material sufficiently stable without applying unnecessary stress, while an edge-guiding system maintains the required running position. The foil moves through the printing section at a controlled rate before entering the drying area.
Once printing is complete, the rewind system collects the material with regulated winding tension to create an evenly formed finished roll. This web-handling arrangement supports consistent processing and helps prepare the printed material for subsequent blister-pack production.
Why Controlled Printing is Important for Blister Foil
Blister Packaging incorporates both protective function and printed marketing appeal into its design, thus making it necessary to have consistent foil printing during the conversion process. The artwork may include small print, repeating graphics and brand and identification information, which must be visually consistent. Ink flow, impression pressure, web alignment, and drying may affect the final result of the printing process. The Blister Foil Printing Machine will regulate all of these factors during the manufacturing process.
Consistent ink metering will ensure proper printing of images, whereas controlled web motion ensures proper positioning of the repeats. Proper drying of the printed web will prepare the material for reeling, thus ensuring proper printed rolls suitable for blister packaging.
35+ Years of Manufacturing Experience
Precision Engineering & Quality Manufacturing
Customized Machine Configurations to Your Needs
Fast and Reliable After-Sales Support
Packaging Applications
- Multi-Colour Blister Foil: Supports registered multi-colour artwork where packaging designs require additional visual elements.
- Printed Lidding Foil: Suitable for continuous roll printing of compatible aluminium lidding materials.
- Branded Blister Packaging: Supports customized logos, product names and graphic elements for branded packaging.
- Healthcare Product Blisters: Can be configured for printed foil used in selected healthcare-product blister applications.
- Capsule Blister Packs: Suitable for printing foil used as a lidding component in compatible capsule blister packaging.
- Tablet Blister Packs: Produces printed lidding foil for compatible blister packaging used for pharmaceutical tablets.
Key Features
- Automatic Web Tension: Regulates foil movement throughout unwinding, printing, drying and rewinding.
- Accurate Colour Registration: Maintains alignment between individual colours in multi-colour printing applications.
- Automatic Edge Guiding: Keeps the foil centred along the required production path.
- Precision Doctor Blade: Controls excess ink on the gravure cylinder for cleaner image transfer.
- Efficient Drying System: Controlled airflow and temperature help prepare printed foil for rewinding.
- Uniform Rewinding: Regulated winding tension supports properly formed finished rolls.
Frequently Asked Questions
Controlled drying prepares the freshly printed surface before rewinding and helps prevent unwanted ink transfer between adjacent roll layers.
The doctor blade removes excess ink from the gravure cylinder surface, allowing controlled ink transfer from the engraved areas.
Web tension and edge-guiding systems maintain controlled foil movement and help minimize unwanted tracking variation during production.
Yes. The machine can be configured with multiple printing stations according to the number of colours required by the artwork.
Blister packaging uses repeating pack layouts. Consistent print repeat helps maintain regular spacing and positioning of artwork throughout the foil roll.
The machine can reproduce product names, logos, identification information, symbols, instructions, fine text and customized graphic designs.
A Blister Foil Printing Machine is used to print compatible aluminium lidding foil supplied in roll form for blister packaging applications.
