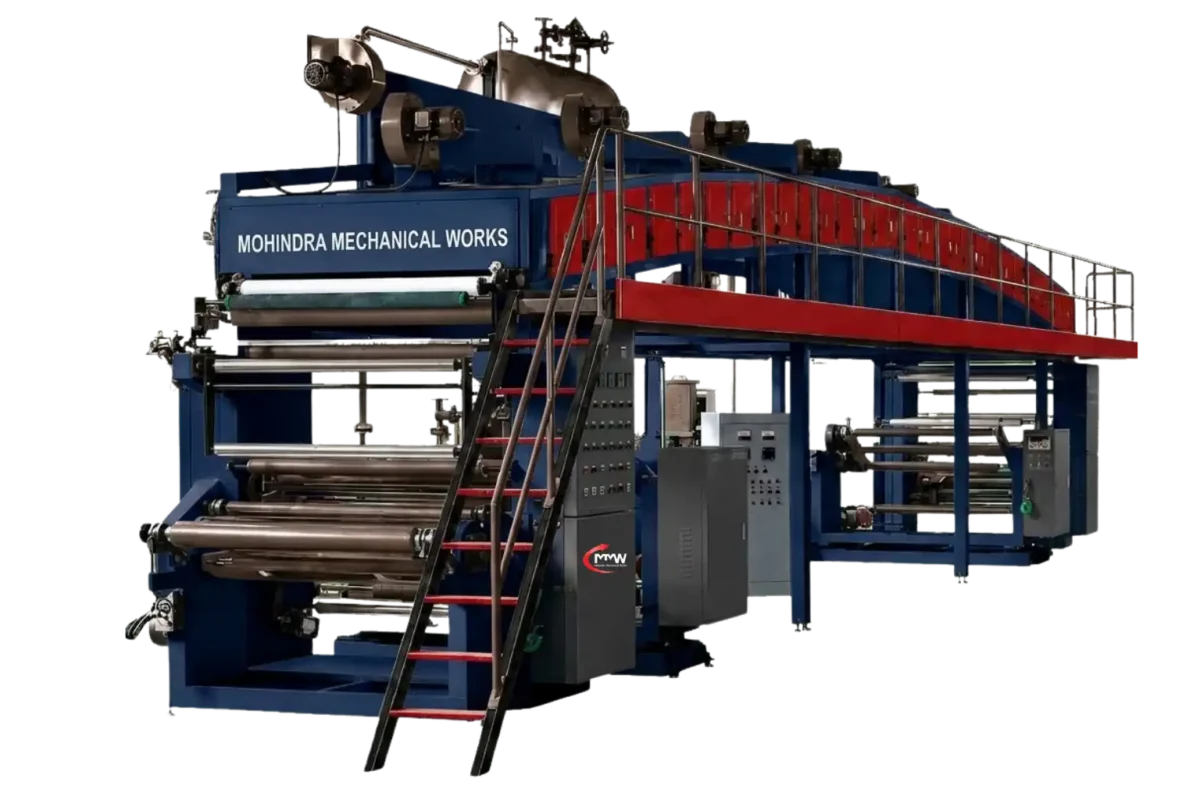

Window Type Lamination Machine
Open-Access Lamination Design for Easier Web Handling and Process Control
Our Window Type Lamination Machine is designed with open processing sections for easy access, so operators are able to see the web movement, material alignment and lamination performance while it is running. It forms consistently bonded structures from compatible paper, film, foil and metallized substrates.
Its efficient frame construction allows quick access for web threading, roller cleaning, production adjustments and normal maintenance. Controlled tension, precision web guidance and uniform nip pressure assist produce smooth laminated rolls for packaging, printing and paper-converting applications.
Request a Quote
Contact us today for machine specifications, pricing, and customized solutions.
Engineered for Better Process Visibility and Accessibility
Coating uniformity, web alignment, roller condition and bonding performance must be monitored frequently in industrial lamination. Routine tasks such as web threading, cleaning and material inspection may require unnecessary downtime in difficult-to-access processing areas.
The window-style machine construction keeps important operating sections accessible while providing suitable protection around moving components. Operators can watch the material travel through the machine and see web wrinkles, edge shifting or coating anomalies before they influence an entire production roll.
Accessible doors and inspection openings also simplify roller cleaning and process adjustments. This operator-focused design is particularly helpful for converters handling frequent material changes and shorter production batches.
Designed for Flexible Film, Foil and Paper Lamination
The Window Type Lamination Machine can be configured for compatible film-to-film, paper-to-film, paper-to-foil and other packaging laminate structures. The main substrate is unwound under controlled tension and guided to the coating or adhesive application area.
The web is then fed through the desired drying or heating device after the adhesive has been applied. It is subsequently mixed with the secondary substrate at the lamination nip. Controlled pressure ensures homogeneous bonding over the working width.
The finished laminate is rewound with controlled torque to produce straight and compact rolls. Depending on the selected configuration, the machine can be supplied with gravure adhesive coating, thermal bonding, hot-air drying, electronic web guiding and PLC-based controls.
Why Lamination Machines Need Accessible Process Sections
Web threading, roller cleaning and adhesive changeovers are routine in lamination production. Restricted access may increase set up time and make it difficult for the operators to inspect the web during running conditions.
The window-type arrangement allows better vision around the coating, guiding and bonding portions. Operators may watch the substrate movement and rectify any creases, misalignments or material tracking difficulties.
The Window Type Lamination Machine is convenient for manufacturers who work with diverse substrates or make frequent production modifications. The simple architecture makes it easy to operate, while it provides the tension, pressure and alignment controls needed to ensure consistent quality of lamination.
35+ Years of Manufacturing Experience
Precision Engineering & Quality Manufacturing
Customized Machine Configurations to Your Needs
Fast and Reliable After-Sales Support
Packaging Applications
- Industrial Protective Rolls: Produces laminated materials for wrapping, lining and selected industrial applications.
- Label and Graphic Materials: Laminates printed substrates requiring improved surface protection and appearance.
- Metallized Film Packaging: Produces decorative laminate structures using BOPP, PET or MetPET materials.
- BOPP and PET Laminates: Processes compatible film combinations for printed packaging and speciality products.
- Paper and Foil Structures: Manufactures moisture-resistant and decorative paper-foil laminates.
- Paper and Film Lamination: Bonds printed or plain paper with compatible film for protective and decorative applications.
- Flexible Packaging Rolls: Produces multilayer laminates for pouches, wrappers and other converted packaging formats.
Key Features
- Adjustable Drying or Heating: Process conditions can be set according to the selected material and adhesive system.
- Controlled Lamination Pressure: Ensures even bonding across the complete working width.
- Electronic Edge Guiding: Corrects lateral web movement and supports accurate layer alignment.
- Stable Web Tension Control: Maintains balanced material movement from unwinding through final rewinding.
- Uniform Adhesive Application: A compatible coating system applies a controlled adhesive layer across the substrate.
- Simplified Web Threading: The open-access arrangement helps operators feed material through the machine more easily.
- Accessible Window-Type Construction: Provides convenient viewing and access to important processing sections.
Frequently Asked Questions
Protective guards, accessible doors, emergency stops and electrical interlocks can be incorporated. Operators must follow the supplied operating and safety procedures.
Yes. Automatic tension control, load-cell feedback, electronic web guiding and synchronized drives can be provided.
Its accessible design primarily simplifies inspection, web threading, cleaning and changeovers. Actual production speed depends on the material, adhesive, drying capacity and machine configuration.
Depending on the selected configuration, it can use suitable solvent-based or water-based adhesives. A thermal lamination arrangement may also be developed for compatible applications.
Yes. The machine can be configured for paper-to-film and paper-to-foil applications.
Yes. Film-to-film structures can be processed when the machine is equipped with the appropriate coating, drying, tension and lamination systems.
It can be configured for compatible paper, BOPP, PET, PE, MetPET, aluminium foil and other flexible packaging substrates.
A Window Type Lamination Machine is designed with accessible viewing or operating sections that help operators monitor, thread, clean and adjust the material path during production.
