Cantilever Slitting & Rewinding Machine

Efficient Slitting & Rewinding with Easy Roll Handling

This Cantilever Slitting Machine is meant for accurate slitting and rewinding of flexible materials for packaging applications where easy loading and unloading of rolls, good web handling capability, and clean finished rolls are needed. With the use of cantilever design of shafts in this machine, it will be easy for operators to load and unload the rolls.

It can be used to slit plastic films, laminate, paper, foils, and other suitable flexible materials. Tension and alignment of slitting parts of the machine help achieve accurate slitting width without any wrinkles and improper winding. This machine can be customized according to different working width, slitting, and winding systems.

Slitting machine for cutting and rewinding flexible packaging materials

Cantilever Slitting Machine industrial equipment in India

600 MPM Servo Cantilever Slitter Rewinder Machine

High-Speed Cantilever Slitter Rewinder 350 MPM

Request a Quote

Controlled Slitting for Clean & Accurate Finished Rolls

Slitting quality depends on consistent material movement, proper tension and right alignment of the cutting mechanism. The Cantilever Slitting Machine is designed to control the web travel from the unwinding, slitting and final rewinding.

The configuration of the appropriate slitting processes (depending on the material being treated) achieves clean, consistent edges. The adjustable tension eliminates roll formation difficulties such as loose winding, over stretching and telescoping.

The cantilever winding configuration also gives easy access to finished rolls, making roll removal during routine manufacturing easier.

Designed for Different Flexible Materials

The Cantilever Slitting Machine can be adapted for a variety of flexible substrates for packaging, converting, printing and associated sectors. These include BOPP, PET, PE, CPP, PVC, laminated films, paper, aluminum foil and other suitable web materials.

It has a web guiding and tension control mechanism which assists in holding the material in its proper position throughout processing. According to the characteristic and thickness of the substrate, the slitting width, winding tension and other operating parameters can be modified.

Machine configurations can be changed to suit the desired web width, completed roll size, number of slits and production application.

Why Choose Cantilever Slitting?

A cantilever arrangement is particularly useful where frequent roll changes and convenient access to the winding section are required. The open-side design can simplify finished-roll handling compared with configurations where the winding shaft is supported from both ends.

When combined with controlled tension, accurate web guiding, and a suitable slitting system, the machine supports reliable conversion of wider parent rolls into narrower finished rolls.

Proper adjustment of slitting position, web tension, winding pressure, and roll alignment helps manufacturers obtain uniform rolls while maintaining the quality of sensitive flexible materials.

35+ Years of Manufacturing Experience

Precision Engineering & Quality Manufacturing

Customized Machine Configurations to Your Needs

Fast and Reliable After-Sales Support

Technical Specifications

Category	Specification
Machine Type	Cantilever Slitting Machine
Maximum Web Width	1300 mm
Minimum Slit Width	50 mm
Mechanical Speed	Up to 300 M/Min
Unwind Roll Diameter	Up to 800 mm
Rewind Roll Diameter	Up to 600 mm
Slitting System	Razor / Shear Knife Slitting
Unwinding System	Pneumatic Air Shaft
Rewinding System	Cantilever Type Differential / Air Shaft Rewinding
Web Guiding System	Automatic Edge Position Control (EPC)
Tension Control	Automatic Tension Control
Unwind Brake	Pneumatic Brake
Drive System	AC Vector Drive / Servo Drive

Packaging & Converting Applications

Printed Web Materials: Can process compatible pre-printed rolls while maintaining web alignment through the slitting section.
PE & CPP Films: Supports slitting and rewinding of compatible flexible films where stable tension is important for roll formation.
Paper Materials: Suitable configurations can be provided for selected paper rolls used in packaging and converting operations.
Aluminium Foil: Can be configured for compatible foil applications requiring controlled web movement and accurate winding.
BOPP & PET Films: Suitable for slitting commonly used packaging and converting films into required finished widths.
Laminated Films: Can process compatible multilayer laminated structures while maintaining controlled tension during slitting and rewinding.
Flexible Packaging Films: Suitable for converting wider flexible packaging films into accurately sized rolls required for downstream production.

Key Features

Flexible Machine Configuration: Working width, slitting arrangement, winding system, and controls can be selected according to production needs.
Adjustable Operating Parameters: Allows settings to be matched with different material thicknesses, widths, and winding requirements.
Web Guiding System: Helps maintain correct material alignment throughout the slitting operation.
Multiple Material Compatibility: Can be configured for films, paper, foil, laminates, and other compatible flexible substrates.
Uniform Roll Formation: Controlled winding helps reduce loose rolls, telescoping, wrinkles, and uneven edges.
Controlled Web Tension: Helps maintain stable material movement from unwinding to final rewinding.
Accurate Slitting: Proper knife positioning supports consistent finished widths and clean slit edges.
Cantilever Rewinding Design: Provides convenient access for loading, unloading, and handling finished rolls.

Explore Related Slitting & Rewinding Solutions

We offer reliable slitting and rewinding solutions for film, foil, paper, and laminated materials, with configurations available to suit different production requirements.

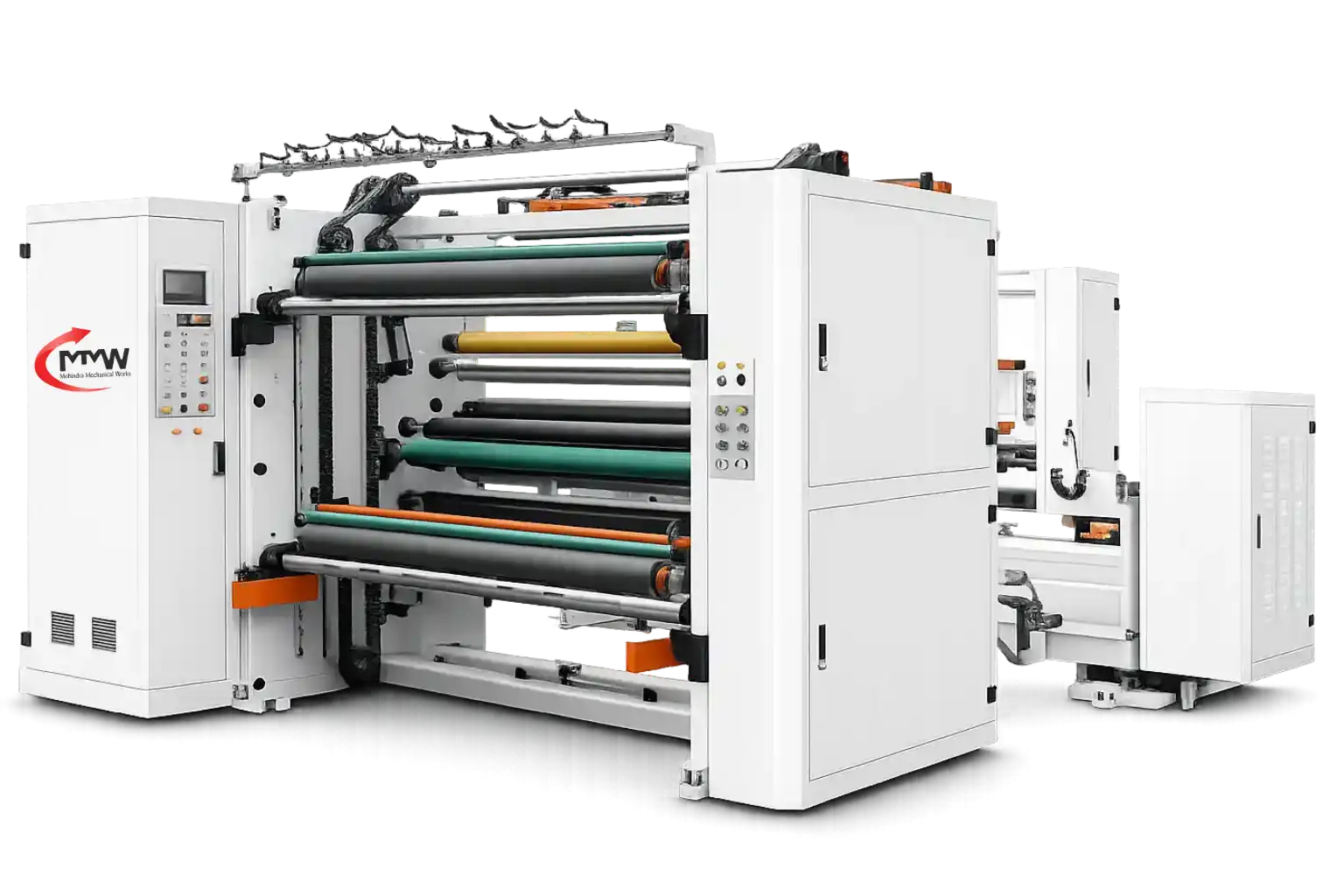

Cantilever Paper Slitting Rewinding Machine

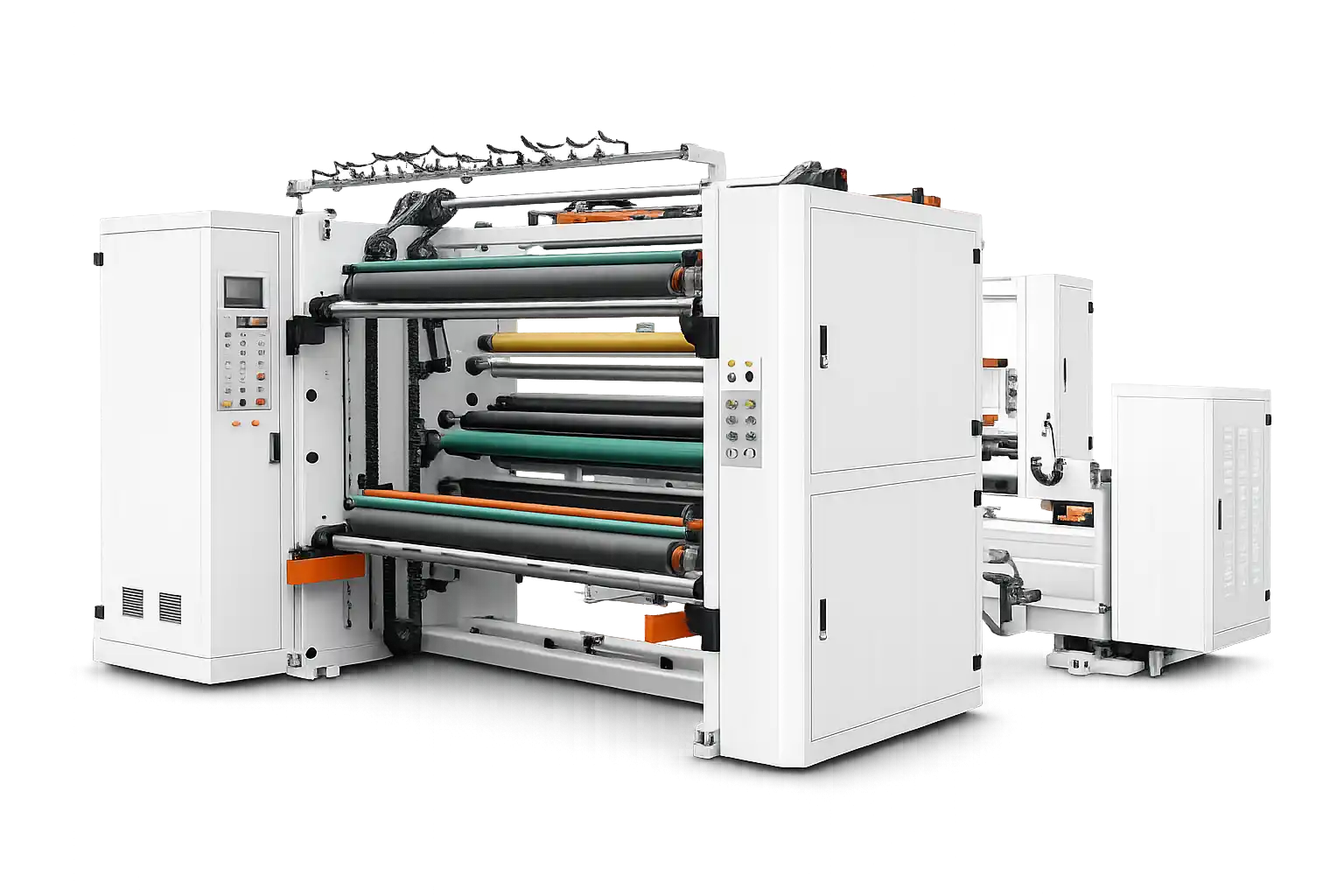

Cantilever Paper Slitting Machine

Precision slitting machine designed for smooth, accurate and efficient slitting of paper rolls.

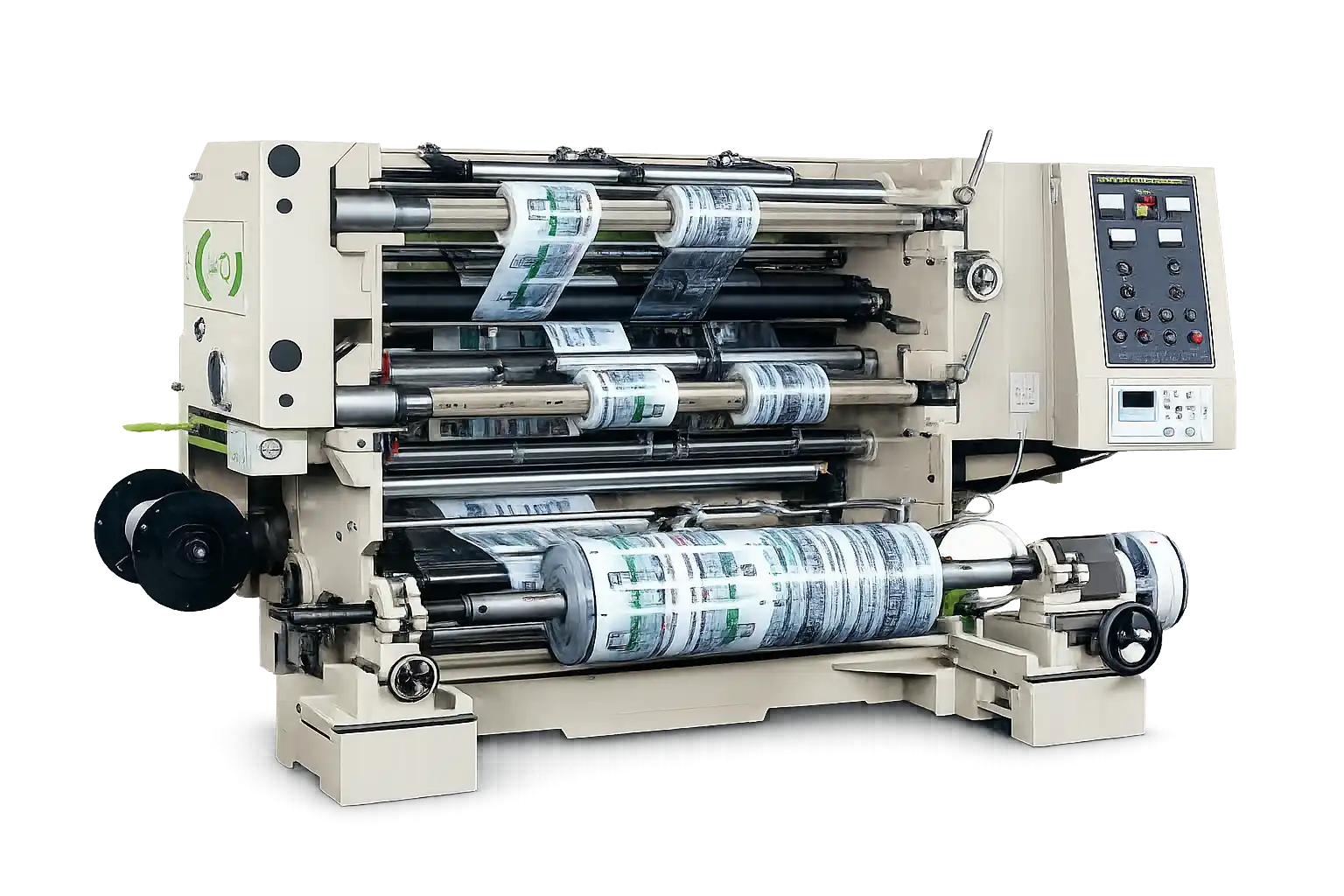

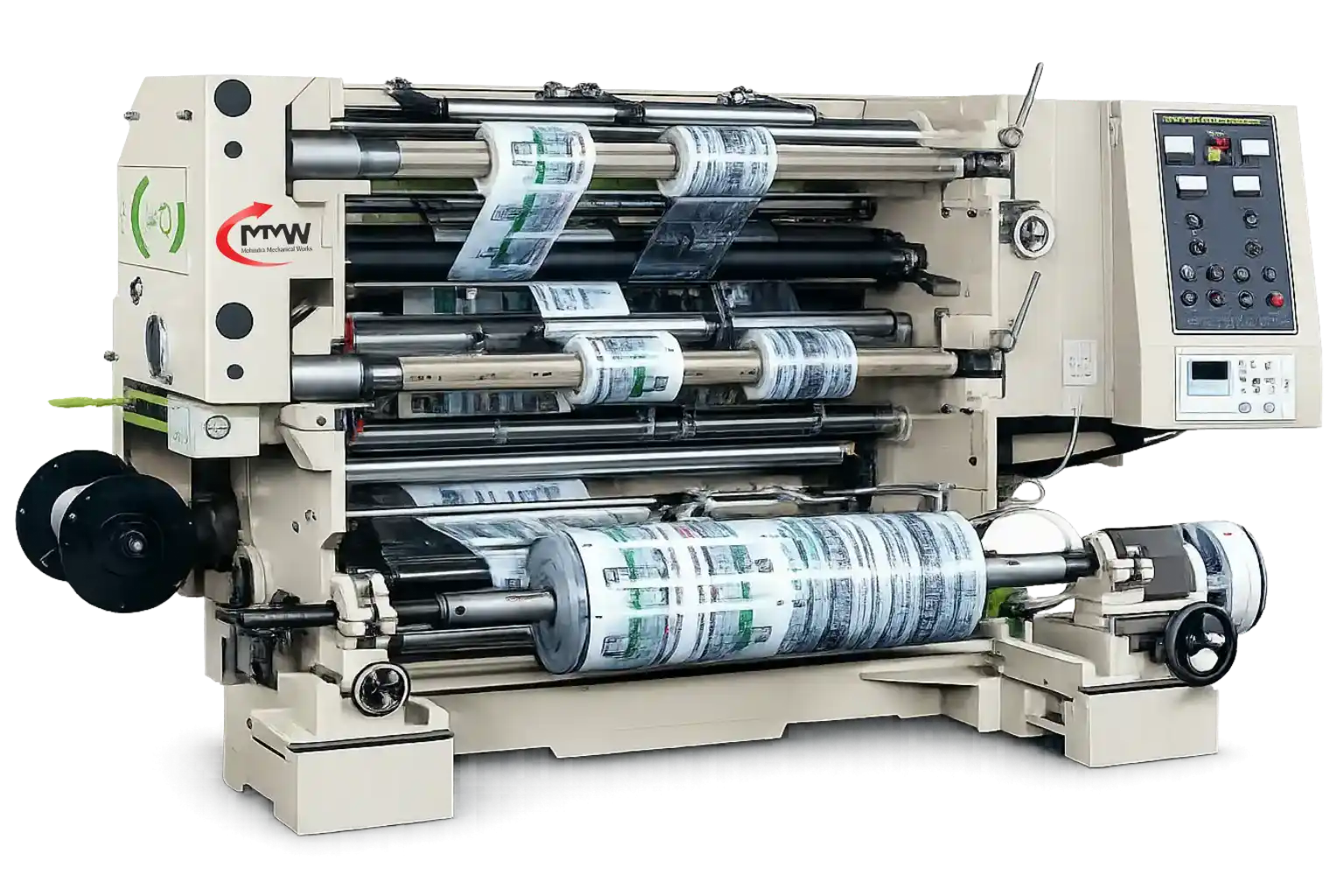

Cantilever Aluminium Foil Slitting Machine

High-precision slitting solution for clean and consistent processing of aluminium foil rolls.

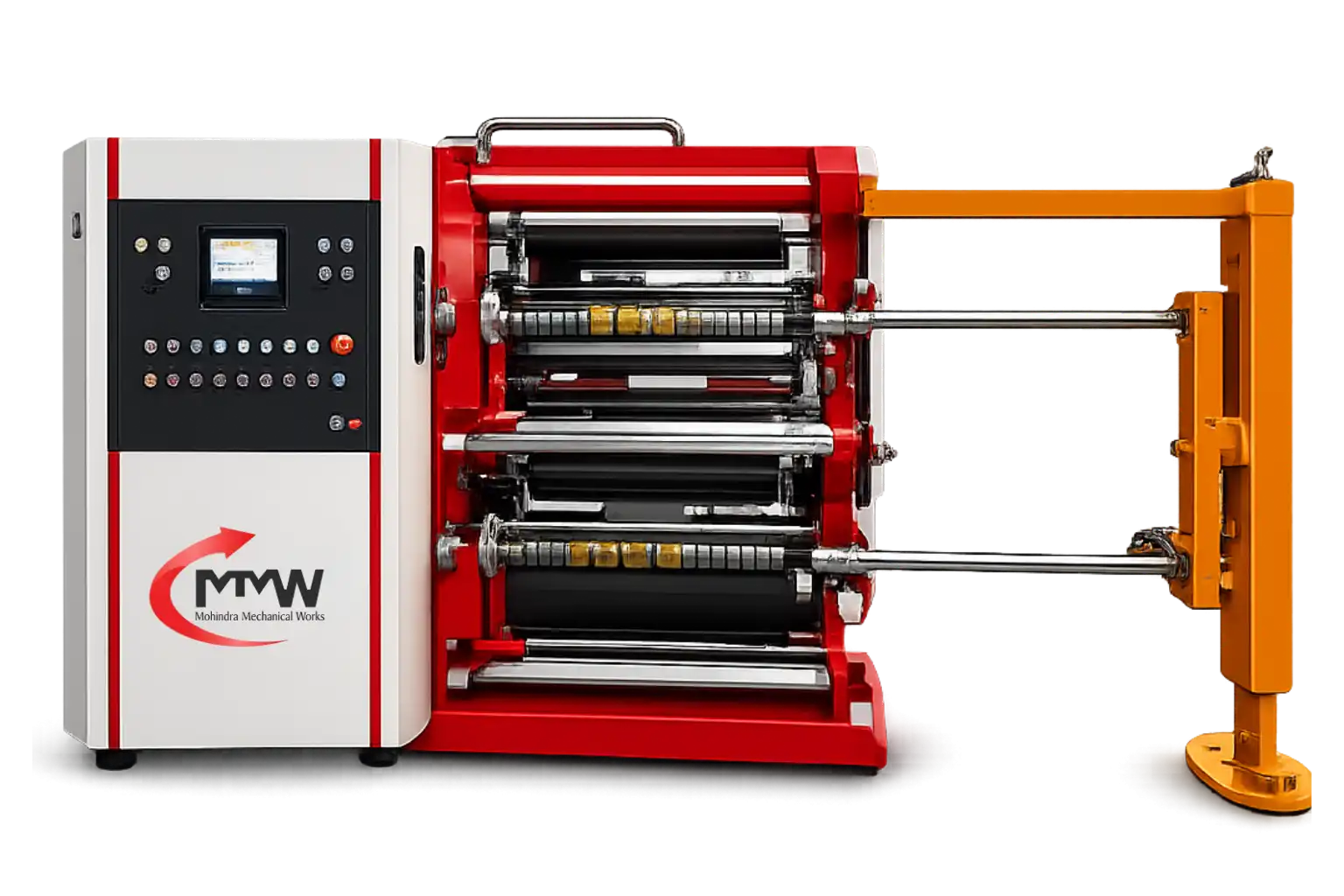

Cantilever Film Slitting Machine

Efficient cantilever slitter designed for accurate cutting and rewinding of flexible film materials.

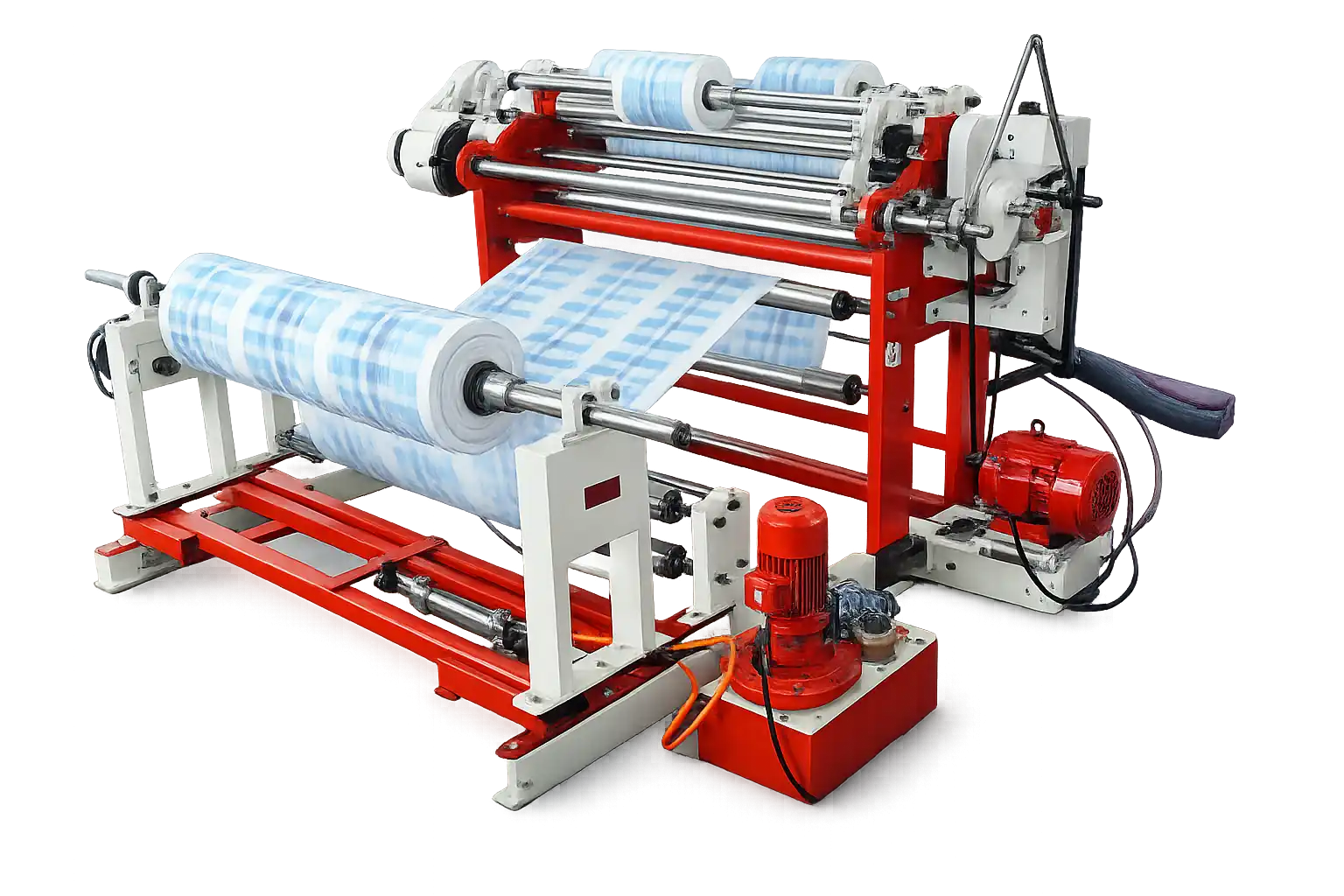

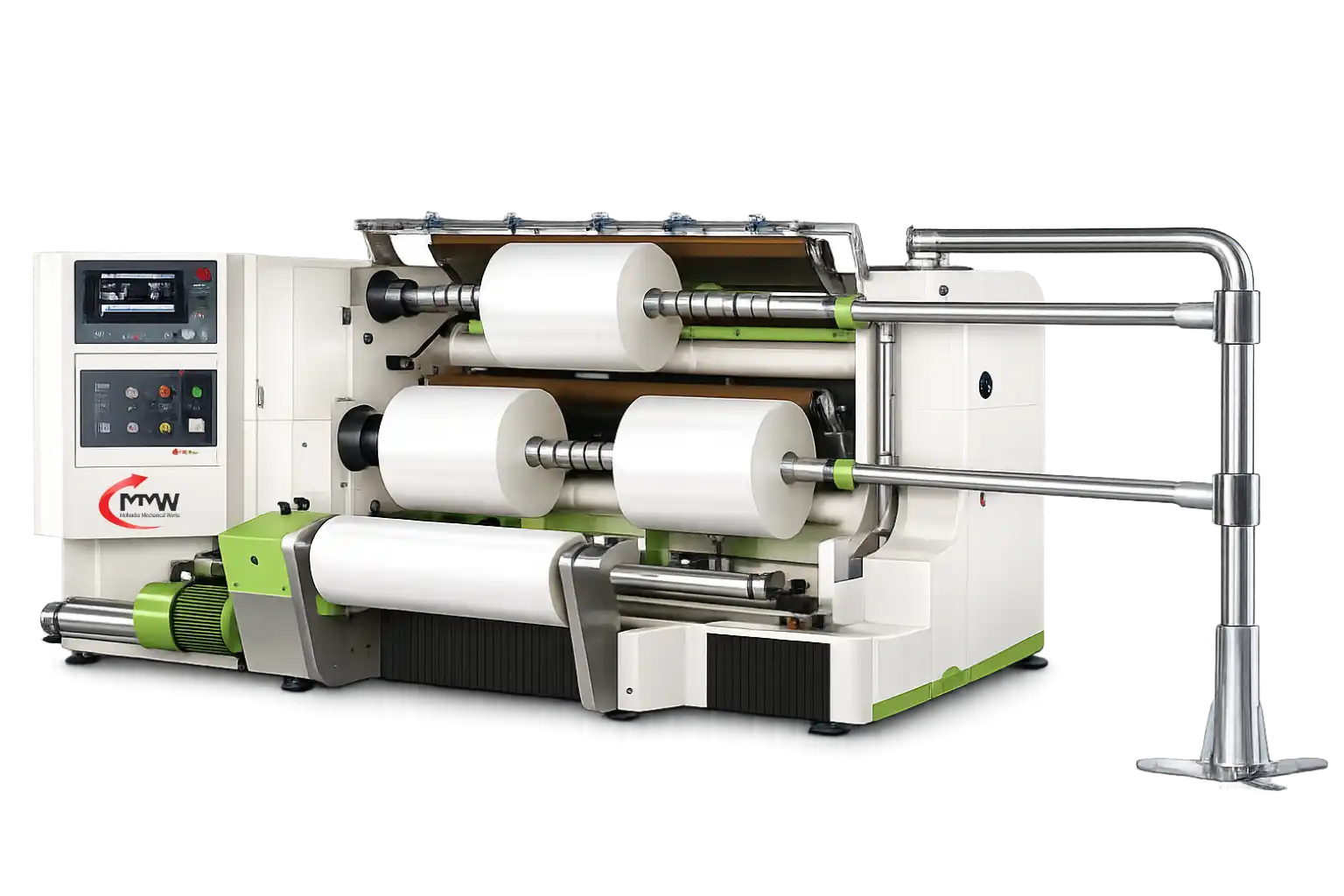

Cantilever Polyester Film Slitting Machine

Precision machine for smooth slitting and controlled rewinding of polyester film rolls.

High Speed Cantilever Slitter Rewinder 350 MPM

High-speed slitter rewinder engineered for accurate roll conversion with stable operation up to 350 MPM.

Servo Based Cantilever Slitter Rewinder Machine 600 MPM

Servo-controlled high-speed slitting and rewinding machine built for precision web handling and productivity.

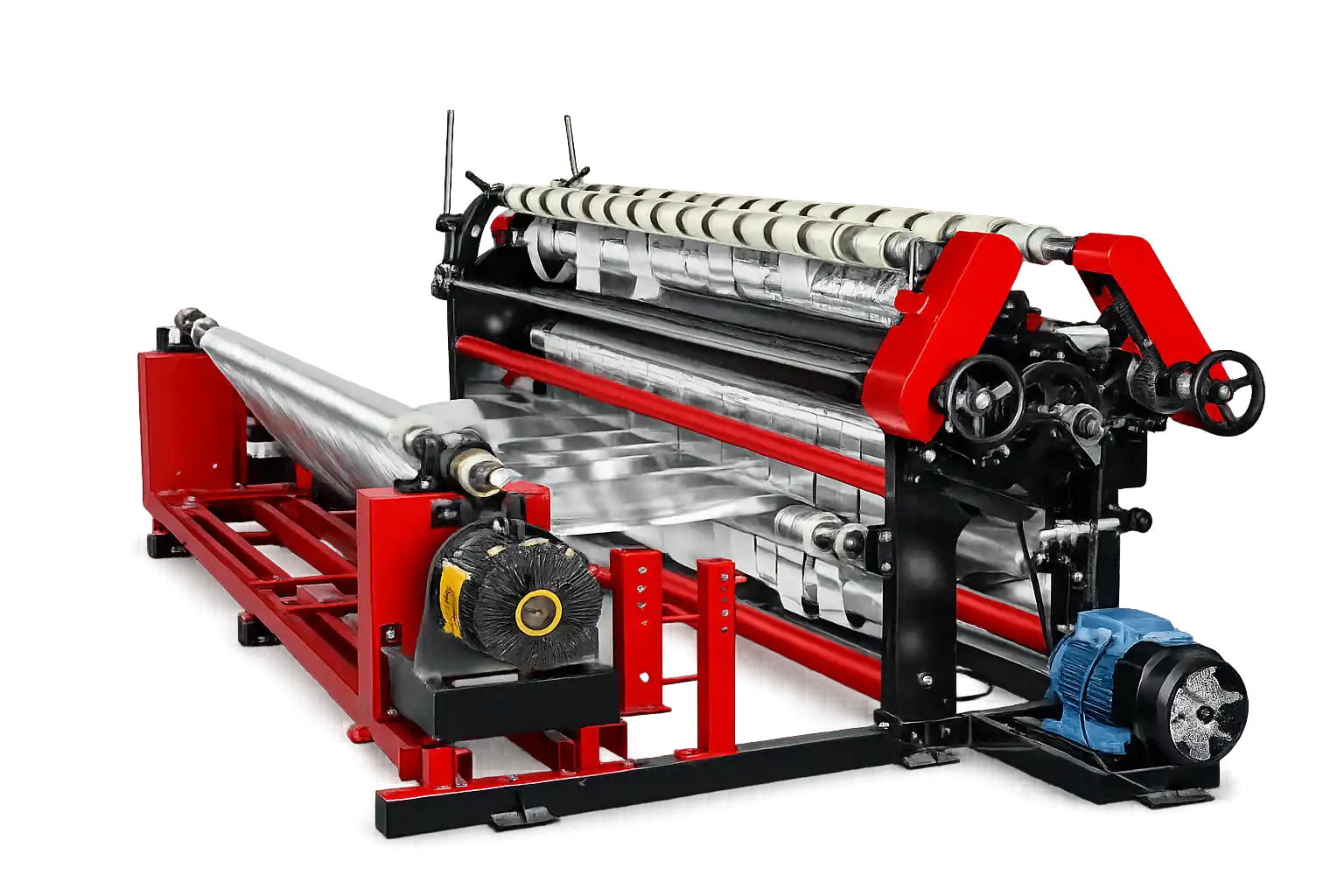

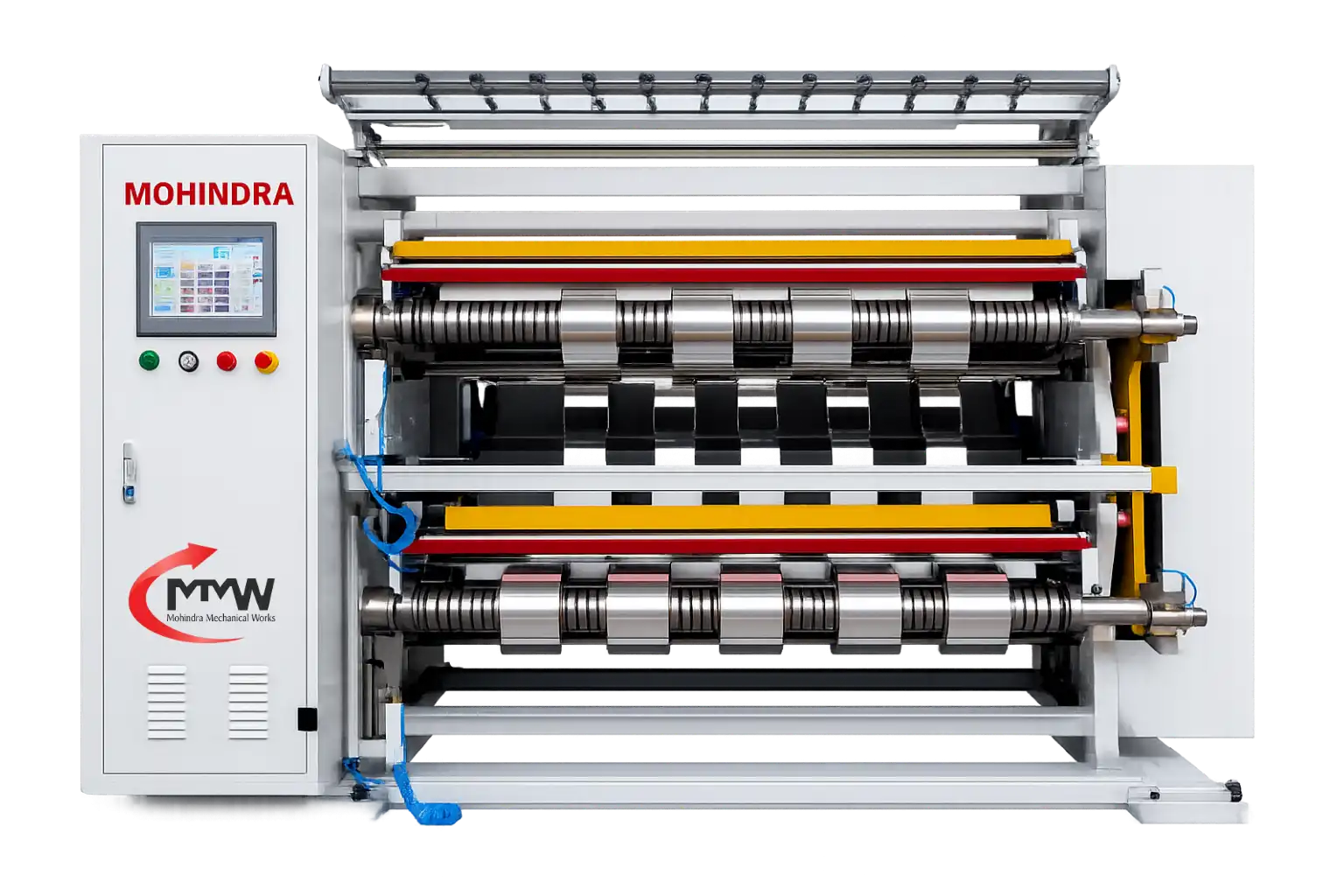

Cantilever Metalized Film Slitting Machine

Precision slitting system developed for clean and controlled processing of metalized film rolls.

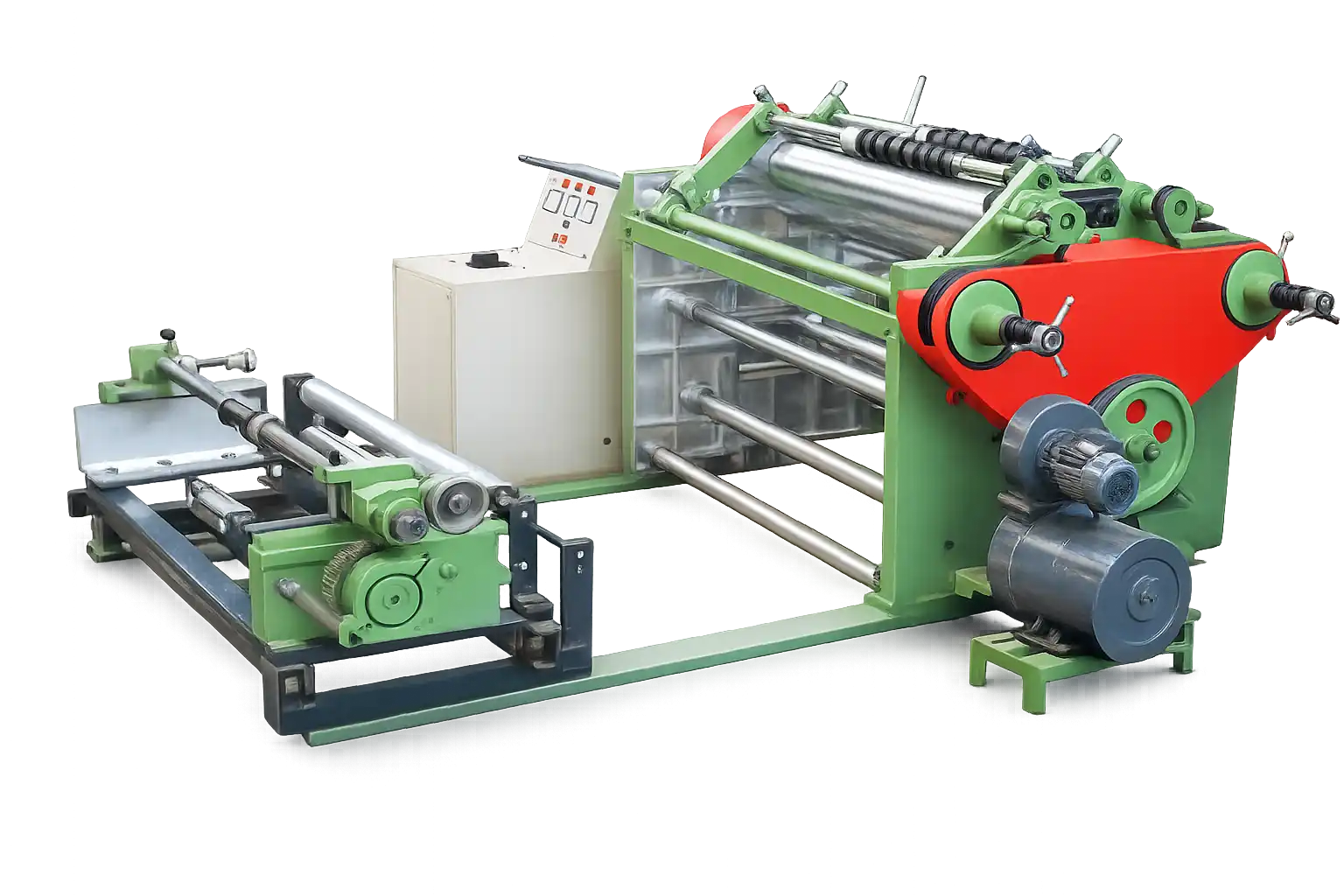

Cantilever LD Film Slitting Machine
