Automatic drum type slitting machine for paper and film roll cutting

Fully Automatic Drum Type Slitting Machine

Automated Slitting for Continuous Roll Conversion

The Fully Automatic Drum Type Slitting Machine is built for the purpose of converting wide rolls of material into smaller rolls that have been cut precisely and with minimal operator input. The automatic operating process of the machine makes it easier to integrate functions such as unwind, web feeding, slitting, tension control, and rewind during production. The drum supported winding system ensures consistent contact with the resulting reels even as their diameter changes, thus aiding roll consistency. The machine can be applied on various materials depending on its setup including compatible flexible film, paper, aluminum foil, metallized film, lamination and many other roll materials.

Request a Quote

Automatic Web Handling from Unwind to Rewind

The continuous slitting process involves much more than precise slitting; the material must remain stable throughout its travels through the various machines. The automatic web handling system controls material movement from the parent roll through the slitting area to the rewinding area.

Controlled web travel aids in reducing unnecessary lateral movements of the material, and in ensuring consistent positioning at the knives. As changes occur in operating conditions due to changes in the roll diameter, the machine continues to control the material flow based on set parameters.

This automation process saves operator time, thus providing consistent converting throughout the long production runs.

Drum-Supported Rewinding for Uniform Reel Formation

Reels that have already been completed require adequate support while being wound to avoid the development of irregular reels. In the case of the drum type of configuration, the slit reels continue to be supported as they expand in diameter, thereby facilitating the settling of the layers of the material being wound.

Controlled winding promotes effective management of issues affecting reels such as telescoping, loose layers, edge variations, hardness, and irregular rolls among others. Winding parameters that are appropriate can be chosen based on the nature of the substrate and its thickness.

Efficient Production with Reduced Manual Adjustment

Automation is especially beneficial where there are repeated slitting runs or longer parent rolls to be handled. As soon as the right operating parameters have been determined, the machine will be able to keep its slitting and winding operations coordinated without constant manual intervention.

This will help increase efficiency while slitting reels of different widths and at the same time allow the operator to focus on loading of material, knife set up, process control and roll inspection. The machine can be configured differently based on the chosen controls. With automation and drum winding, the machine is ideal for roll converting activities.

35+ Years of Manufacturing Experience

Precision Engineering & Quality Manufacturing

Customized Machine Configurations to Your Needs

Fast and Reliable After-Sales Support

Packaging Applications

Industrial Roll Materials: Useful for various compatible roll-to-roll converting applications.
Paper-Based Packaging: Processes compatible paper webs into narrower production reels.
Metallized Film Rolls: Suitable for selected metallized substrates requiring controlled roll formation.
Aluminium Foil Rolls: Can be configured for compatible foil converting requirements.
Printed Web Conversion: Prepares printed roll materials for subsequent pouch, bag, or packaging processes.
Laminated Packaging Material: Suitable for compatible multilayer laminates used in downstream conversion.
Flexible Packaging Rolls: Converts suitable packaging webs into required finished reel widths.

Key Features

Reduced Operator Intervention: Automated operation minimizes repeated manual adjustments during continuous production.
Multiple Substrate Capability: Can be configured for compatible film, foil, paper, metallized, and laminated webs.
Stable Roll Formation: Helps reduce telescoping, loose winding, and uneven reel profiles.
Accurate Slitting Arrangement: Knife positioning can be configured according to required finished widths.
Controlled Tension Management: Helps maintain suitable web tension throughout roll conversion.
Drum-Assisted Reel Build-Up: Supports finished rolls as their diameter gradually increases.
Automatic Web Processing: Coordinates material movement through unwinding, slitting, and rewinding sections.

Our Fully Automatic Drum Type Slitting Machine Range

Smart automation for consistent output and superior roll quality.

Fully Automatic Drum Type Paper Slitting Machine

High-performance automatic slitting solution for precise cutting and uniform rewinding of paper rolls.

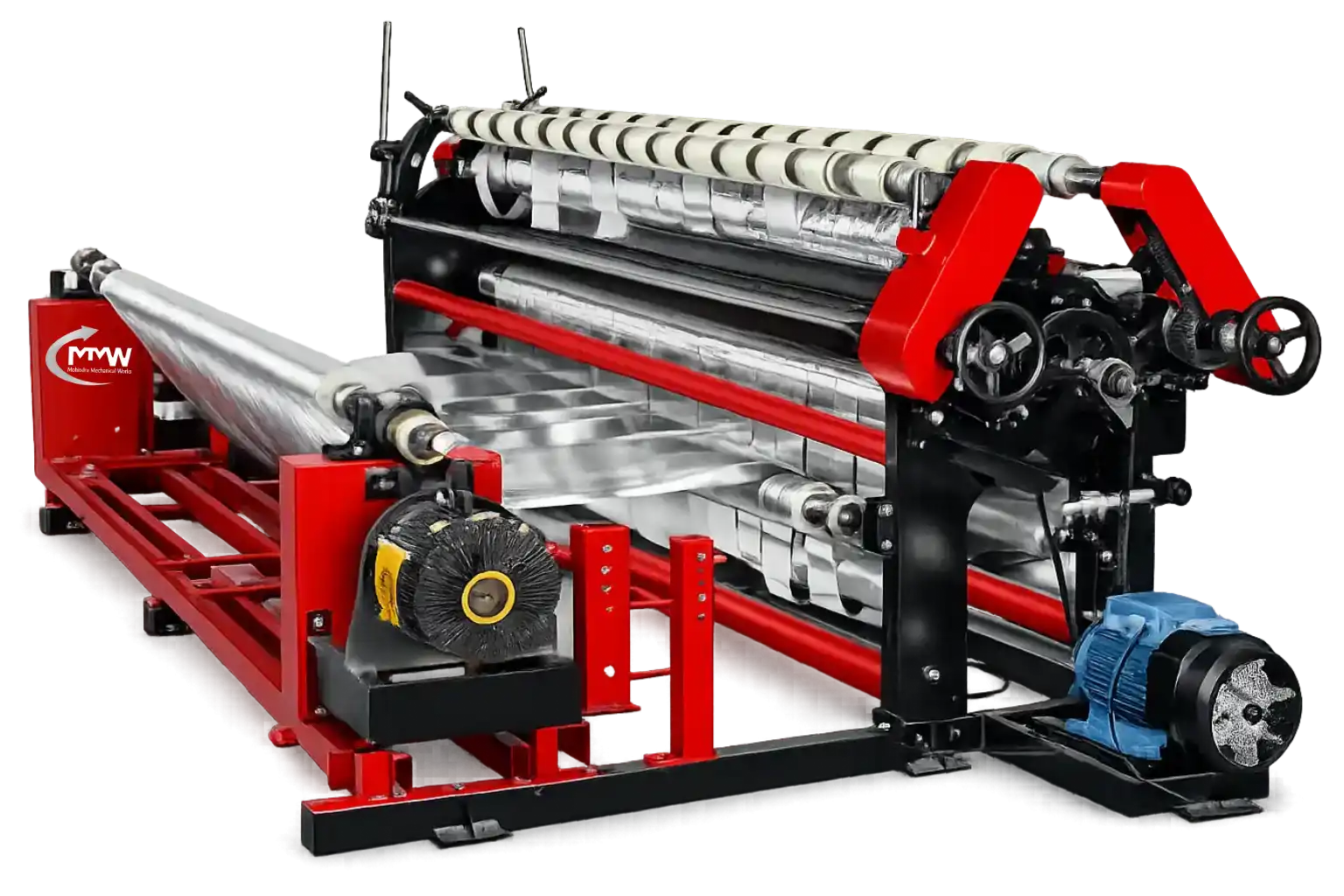

Semi Drum Type Metalized Film Slitting Machine

Fully Automatic Drum Type Metalized Film Slitting Machine

Automatic slitting system developed for controlled handling and accurate conversion of metalized film rolls.

Manual Drum Type Polyester Film Slitting Machine

Fully Automatic Drum Type Polyester Film Slitting Machine

Precision slitter rewinder for smooth processing of polyester film with consistent finished reel formation.

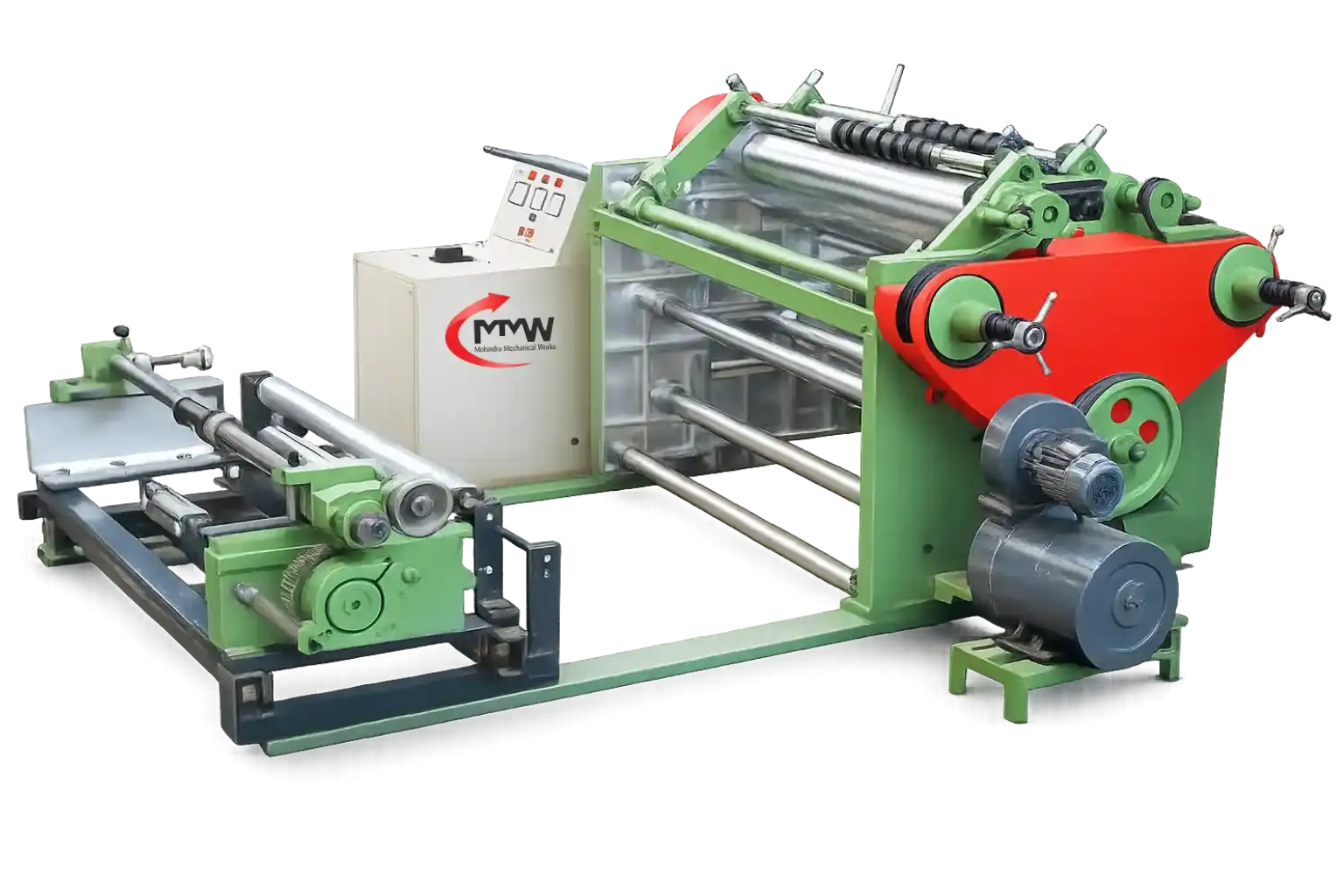

Fully Automatic Drum Type LD Film Slitting Machine

Efficient automatic machine for stable slitting and rewinding of flexible LD film into required roll widths.

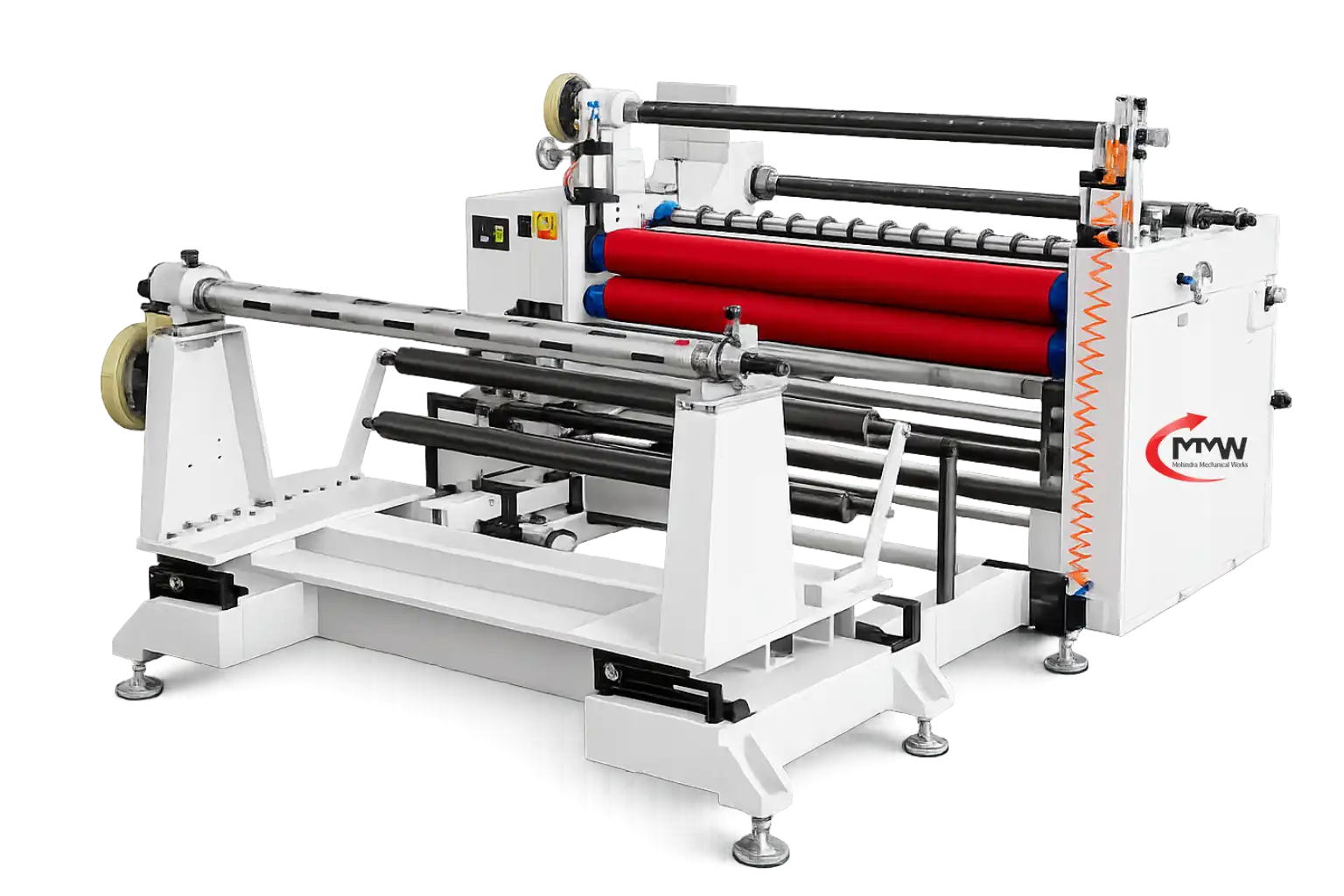

Manual Drum Type Metalized Film Slitting Machine

Fully Automatic Drum Type Foil Slitting Machine

Automatic foil converting solution designed for clean slitting, controlled tension and neat reel winding.

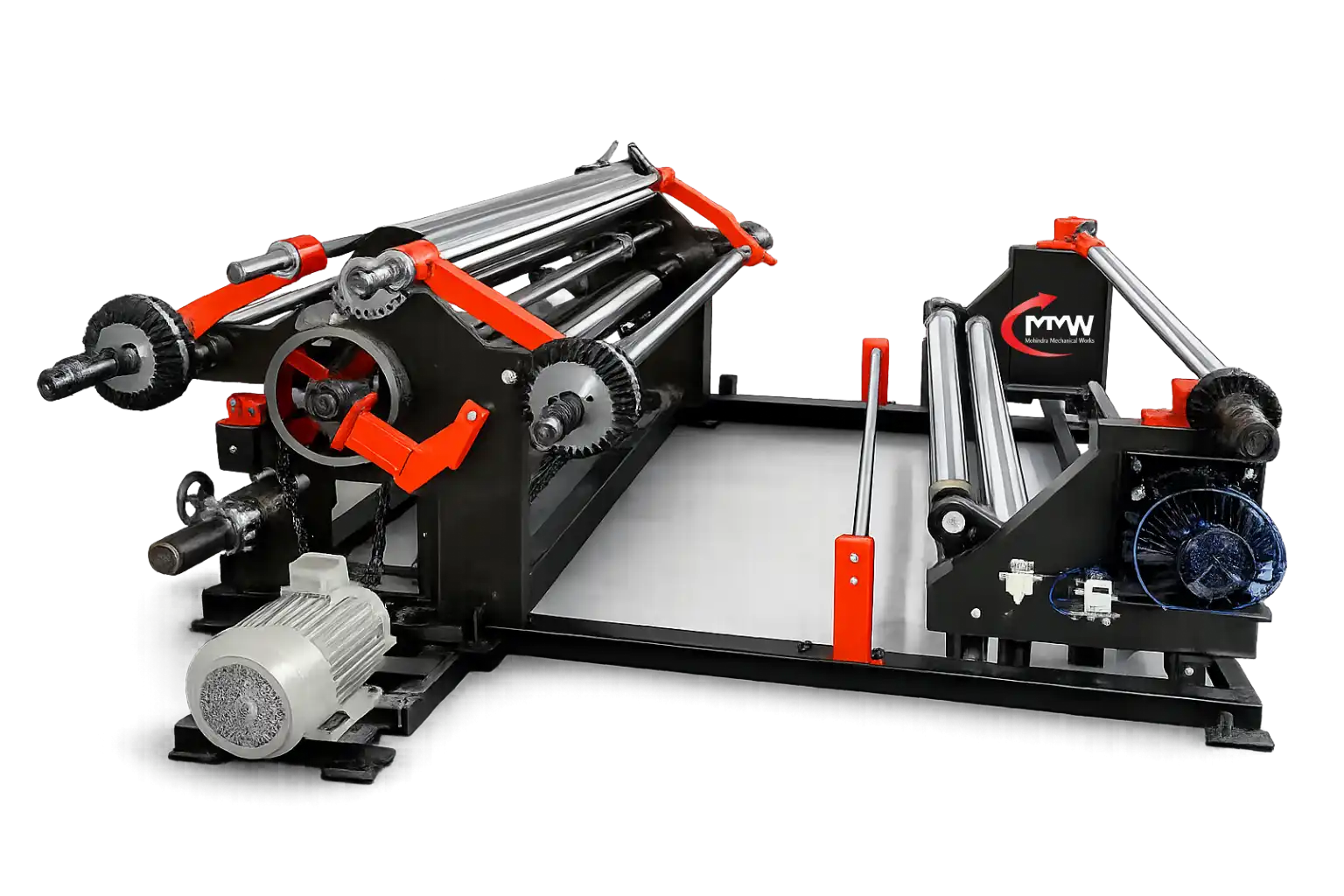

Fully Automatic Drum Type Film Slitting Machine

Versatile automatic slitter rewinder engineered for high-speed processing of flexible film materials.
