Solvent Base Lamination Machine

Flexible Solvent and Water-Based Lamination for Films, Foils and Paper

Converts that need strong, consistent bonding on flexible packaging films, aluminium foil, metallized substrates and paper will find our Solvent Base Lamination Machine ideal. The precision gravure coating technology applies solvent-based adhesive to a uniform layer and then the multi-zone drying chamber evaporates the solvent before the coated web is laminated to the secondary material.

The machine can also be configured as a Solvent Water Lamination Machine for manufacturers processing appropriate water-based adhesives. This dual-process versatility enables packaging businesses to cater to multiple substrate combinations, adhesive systems and customer needs on a single manufacturing platform.

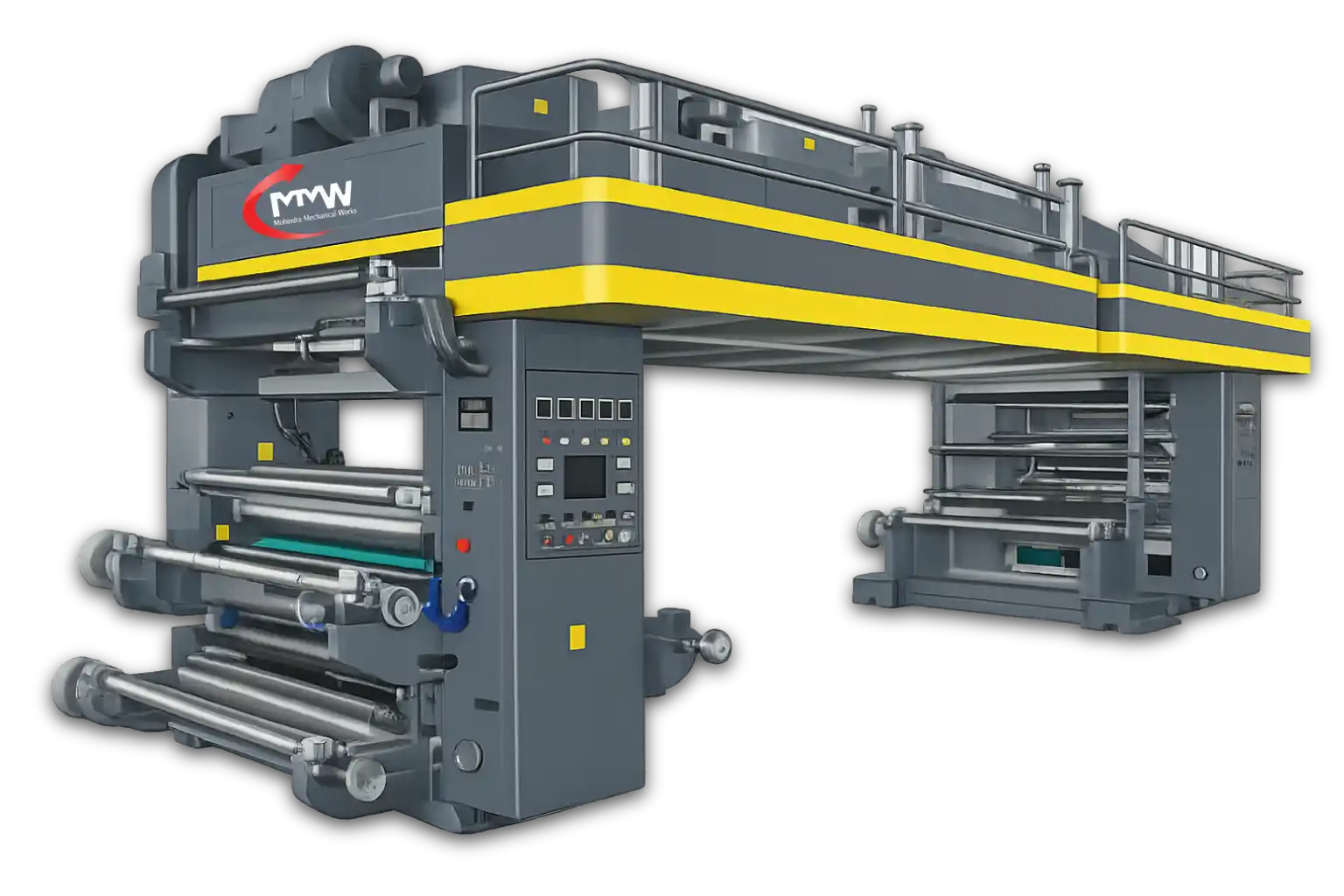

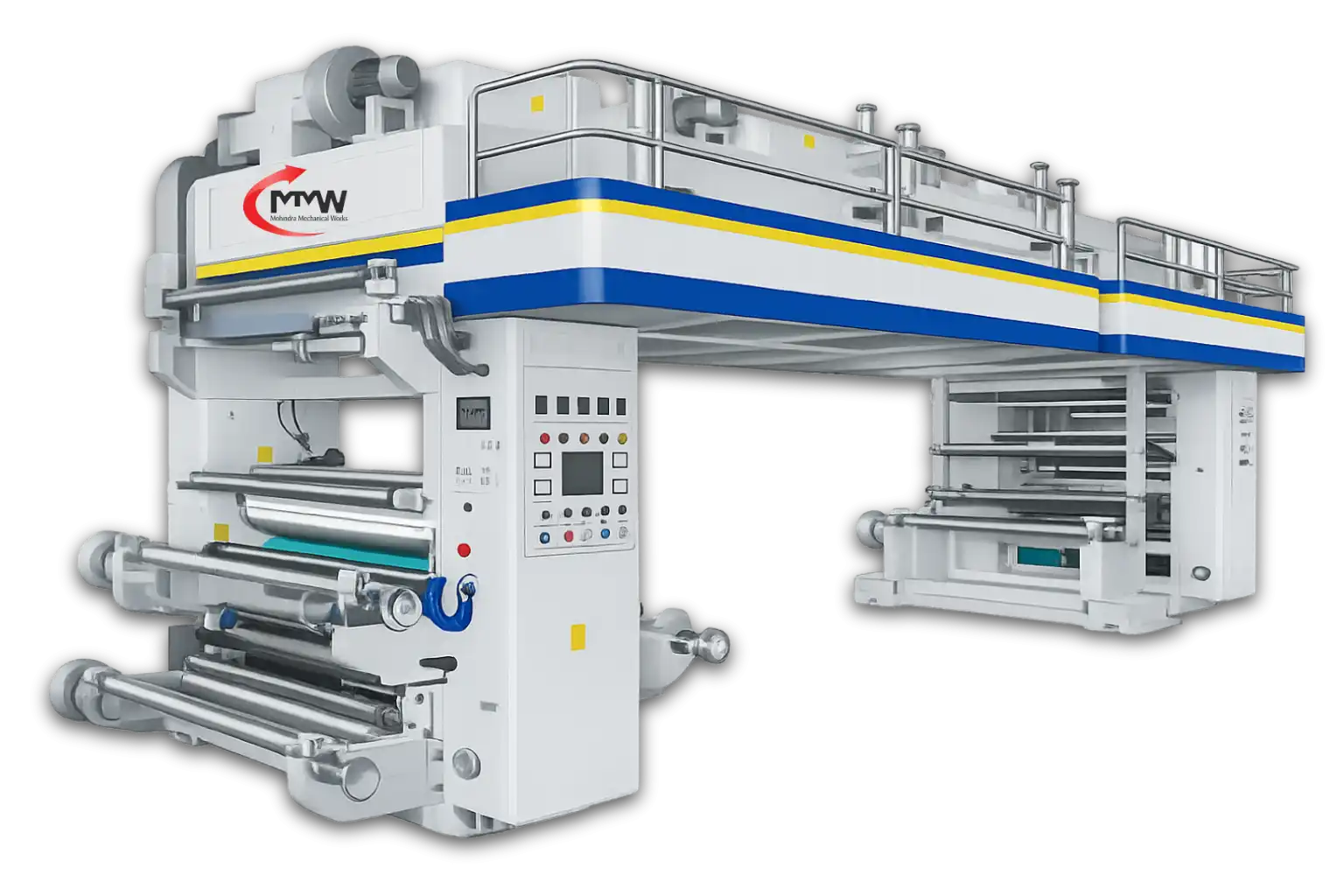

Solvent Base Lamination Machine for flexible packaging and industrial lamination

Request a Quote

Engineered for High-Strength Solvent-Based Lamination

Packaging constructions that call for reliable bonding, chemical resistance and consistent performance in printing, slitting, pouch forming and product filling often choose for solvent-based adhesives. Bond quality, however, depends on proper adhesive coating, complete solvent evaporation and controlled lamination pressure.

Our Solvent Base Lamination Machine applies a measured adhesive layer using a gravure coating system. The coated web travels through independently controlled drying zones, where regulated temperature, airflow and exhaust remove the solvent before lamination.

This controlled process prevents residual solvent, poor bonding, bubbles and delamination. It is appropriate for BOPP, PET, CPP, PE, LDPE, MetPET, aluminium foil, paper and other compatible flexible packaging substrates.

Designed for Solvent and Water-Based Adhesive Flexibility

Packaging converters may receive orders needing different adhesive systems. For more demanding film and foil structures, solvent based glue may be preferred while a compatible water based adhesive may be selected for particular paper, film and environmentally sensitive applications.

The machine can be constructed as a Solvent and Water Based Lamination Machine with proper coating, drying and exhaust arrangements. The coating weight, drying temperature, airflow, web tension and production speed can be adapted by the operators depending on the selected adhesive and material combination.

This versatility allows producers to diversify their product range without the need to establish whole separate lamination lines for each appropriate adhesive procedure.

Real Benefits for Your Factory

When you add this machine to your floor, you see results right away. We want to help you save time and make better products.

Less Material Waste: Because the machine controls the edges and tension well, you throw out fewer rolls.
Faster Production:The quick drying helps you finish big orders in less time.
Lower Power Bills: Our heaters use less energy but still give you all the heat you need.
Flexible Setup: You can quickly switch between making food wrappers, medical packs, or strong covers—all on one machine.

What Can You Make With It?

This machine is great for many types of packaging. You can use it for:

Food and Drink Wrappers: Keep snacks fresh and keep the taste in with strong, multi-layer films.
Medical Packaging: Make safe, sealed foil packs for pills and other medical supplies.
Cosmetic Pouches: Create tough, shiny packets for lotions, shampoos, and beauty products.
Heavy-Duty Covers: Join thick materials for farm covers or building materials.

Upgrade Your Production Today

Get better quality and speed on your packaging line. The team at Mohindra Engineering Company can help you pick the setup you need.
Enquire Now to get a quote and learn how this machine can help your everyday work.

Technical Specifications

Category	Specification
Machine Type	Solventbase Lamination Machine
Maximum Speed	Up to 300–350 M/Min
Maximum Web Width	600 / 800 / 1000 / 1200 / 1300 mm
Unwind System	Simplex
Rewind System	Duplex
Maximum Roll Diameter	Up to 800 – 1000 mm
Core Diameter	76 mm / 152 mm
Drying System	Multi-Zone Hot Air Drying
Compatible Materials	BOPP, PET, LDPE, LLDPE, Metallized Films, Paper, Aluminum Foil

Packaging Applications

Aluminium Foil Laminates: PET-to-foil, paper-to-foil and other suitable barrier structures.
Paper-Film Laminates: Paper bonded with compatible films for wrapping and speciality packaging.
Metallized Packaging: BOPP, PET and MetPET combinations for decorative and barrier packaging.
FMCG Packaging: Laminated material for detergent, personal-care and household products.
Pharmaceutical Packaging: Compatible film-and-foil structures for protective pharmaceutical packaging.
Food Packaging: Laminates for snacks, spices, tea, coffee, confectionery and dry-food packaging.
Flexible Packaging Laminates: Film structures for pouches, sachets, wrappers and printed packaging rolls.

Key Features

Electronic Web Guiding: Maintains accurate alignment between primary and secondary substrates.
Synchronized Drive System: Coordinates coating, drying, laminating and rewinding sections.
Uniform Lamination Pressure: Supports consistent bonding across the complete working width.
Efficient Exhaust System: Removes solvent vapours from the drying section under controlled operating conditions.
Multi-Zone Drying Chamber: Provides independent temperature and airflow control for effective drying.
Solvent and Water-Based Compatibility: Can be configured for compatible solvent-based and water-based adhesive systems.
Precision Solvent Adhesive Coating: Maintains uniform adhesive application across the complete web width.

Our Solvent-Based Lamination Machine Range

We manufacture solvent-based lamination machines for bonding fabric, paper, PVC, polyester and woven materials. These machines provide uniform adhesive coating, strong lamination and consistent roll-to-roll production.

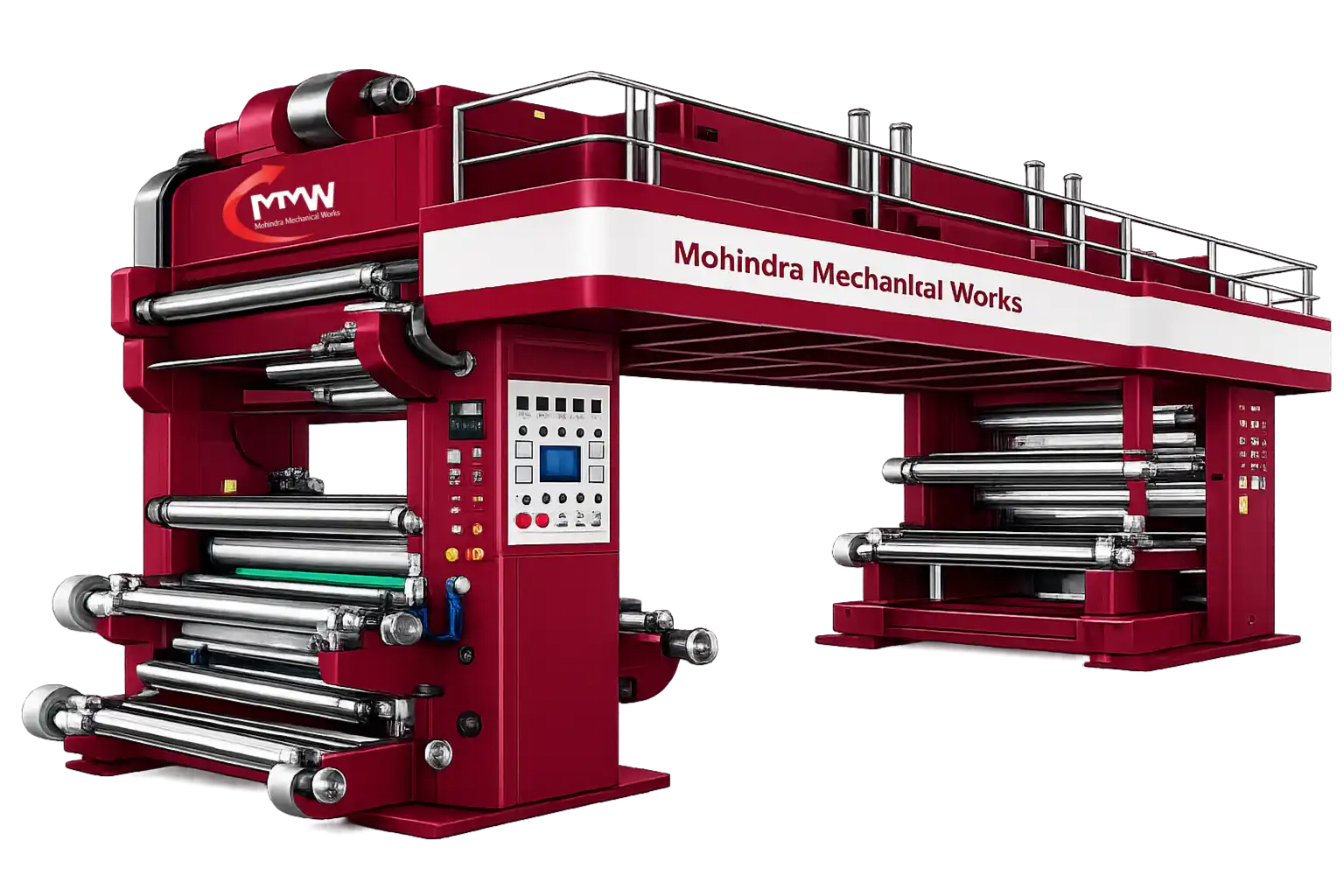

Fabric & PVC Film Lamination Machine

Designed for bonding PVC film with different fabrics using solvent-based adhesive. It delivers uniform coating, strong adhesion and wrinkle-free lamination for industrial applications.

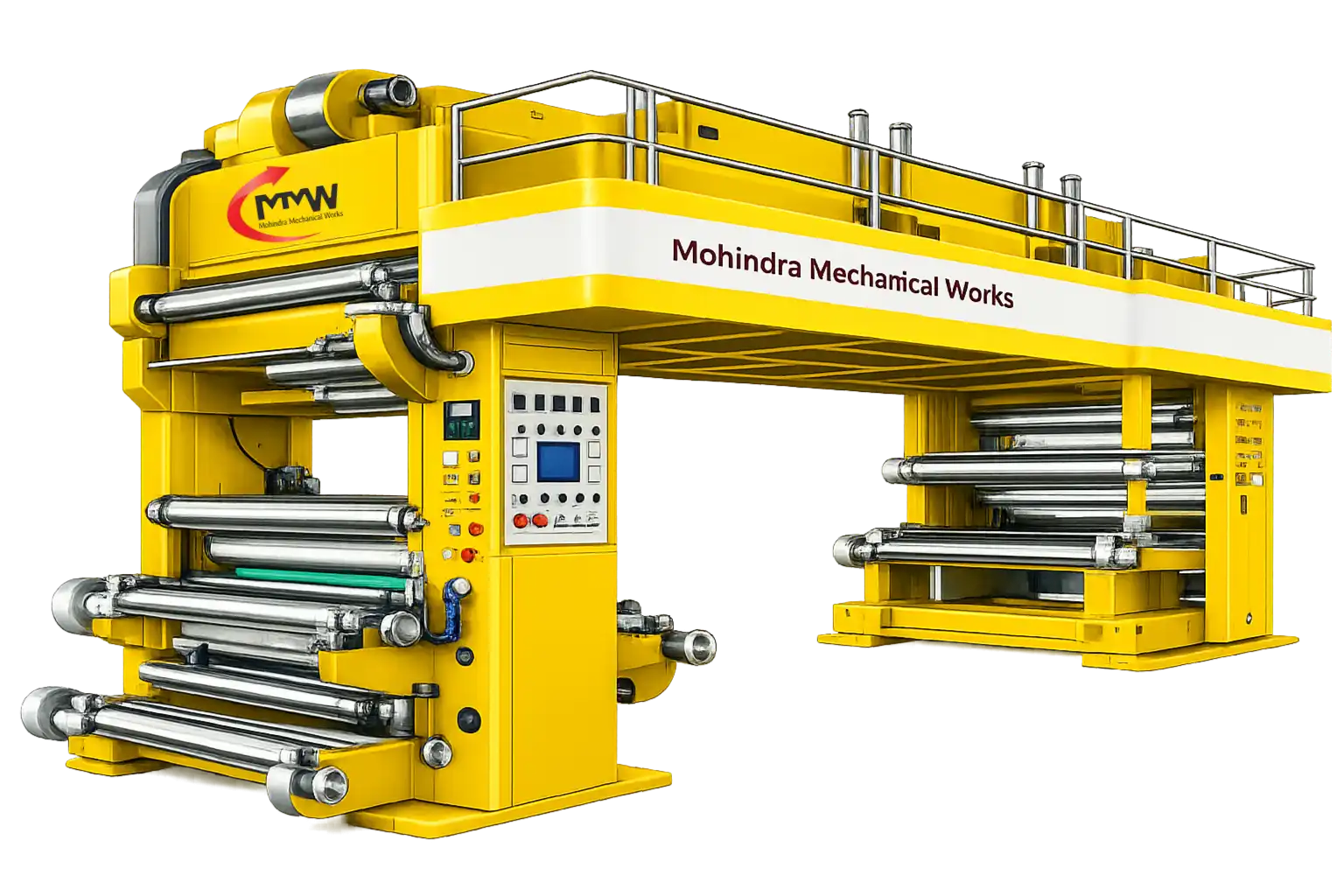

Cloth & PVC Film Lamination Machine

A roll-to-roll laminating solution for combining PVC film with cloth materials. Controlled tension and drying help achieve smooth surfaces and reliable bonding.

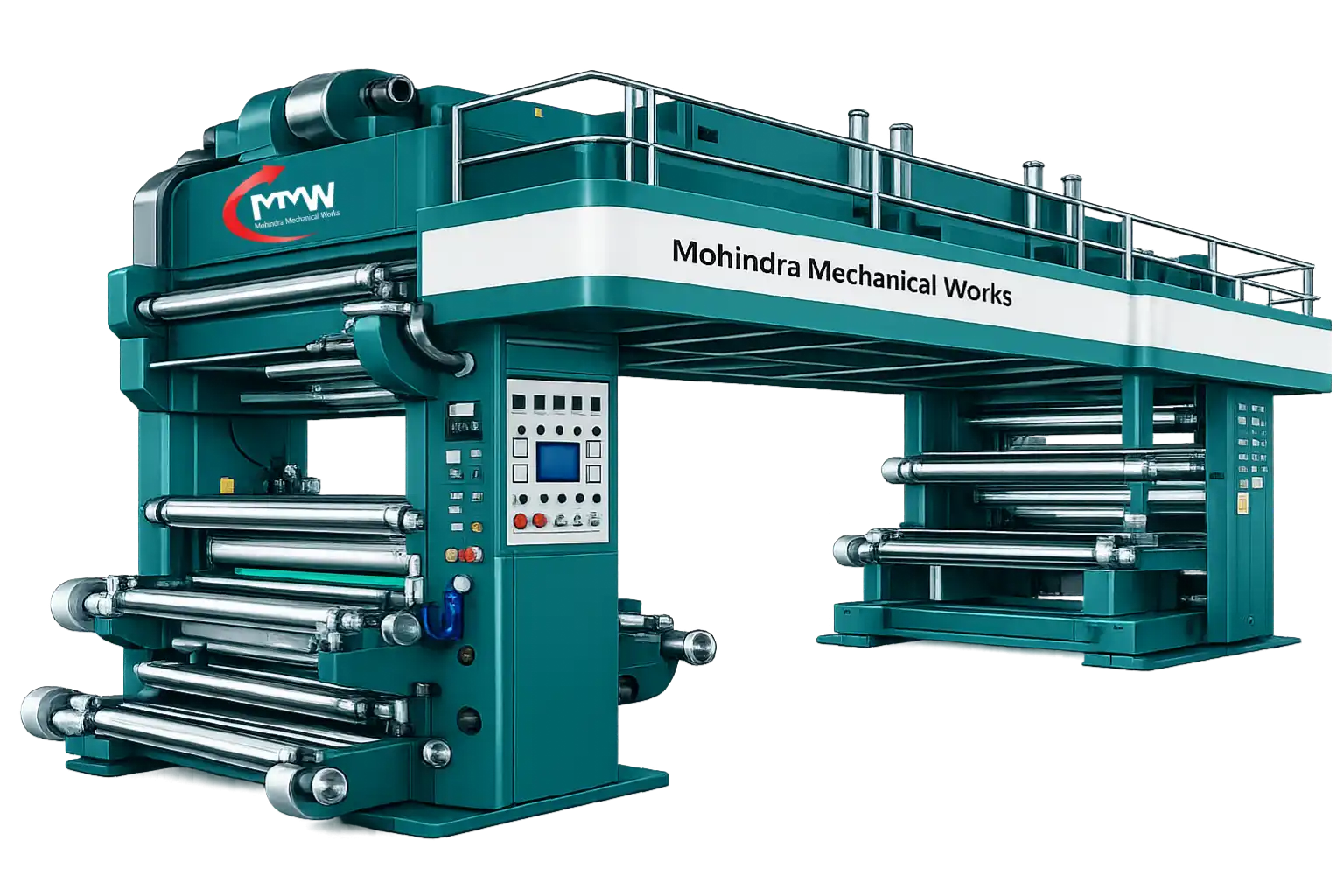

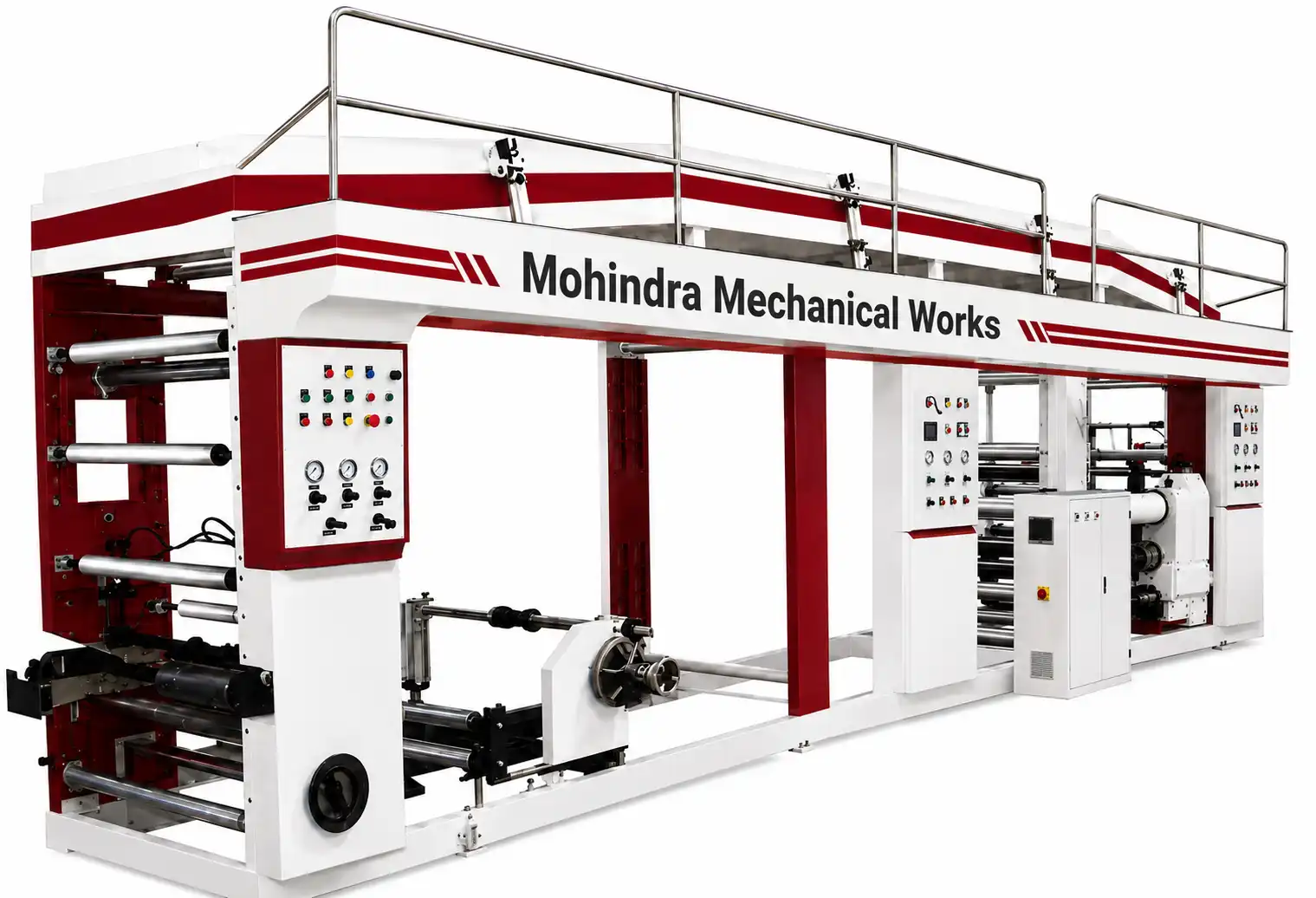

PVC & Polyester Film Lamination Machine

Developed for solvent-based lamination of PVC and polyester films. Precise adhesive application and temperature-controlled drying provide consistent bonding across the working width.

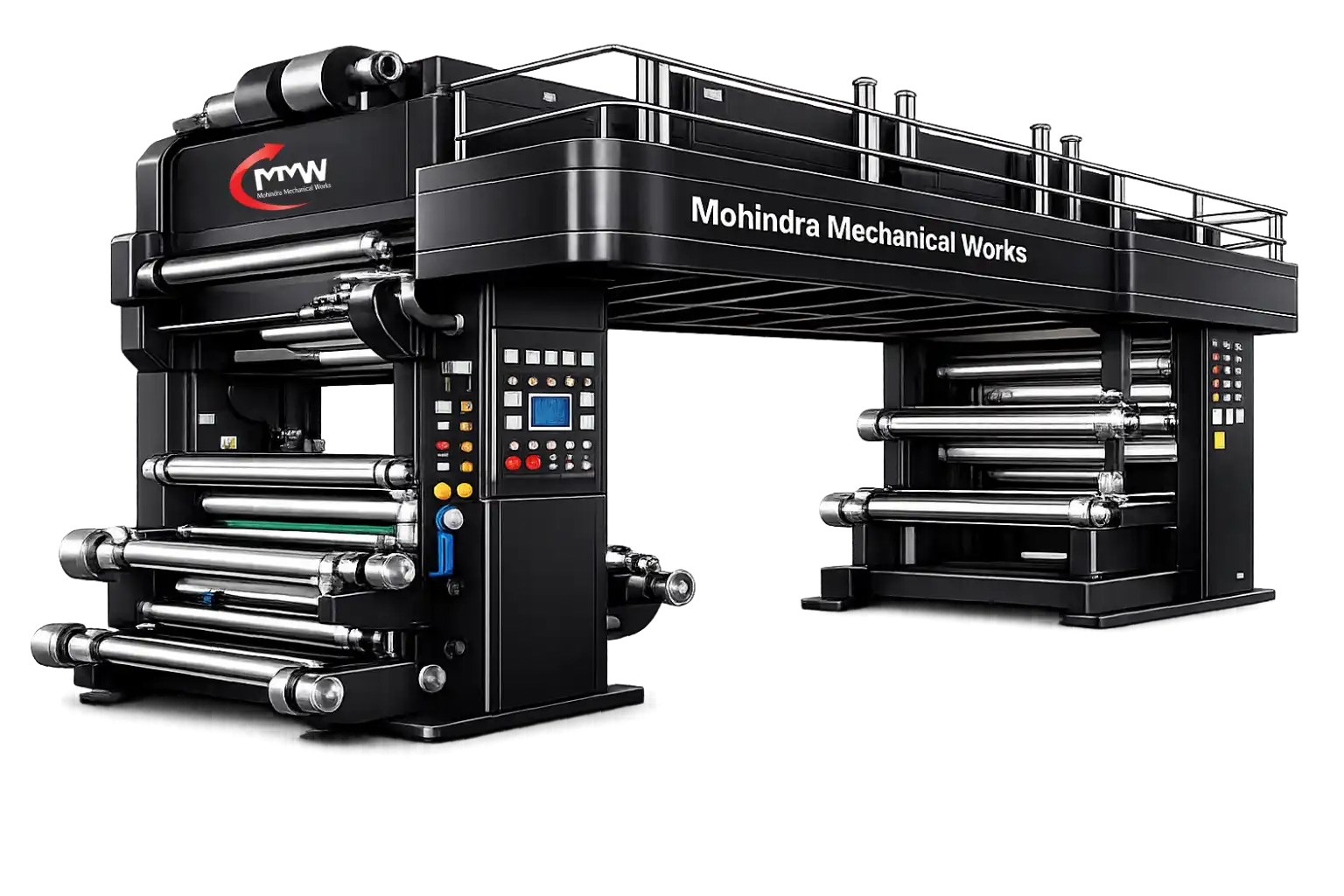

Fabric-to-Fabric Lamination Machine

Suitable for joining two fabric layers using solvent-based adhesive. It provides uniform coating, controlled web handling and durable bonding without damaging the fabric.

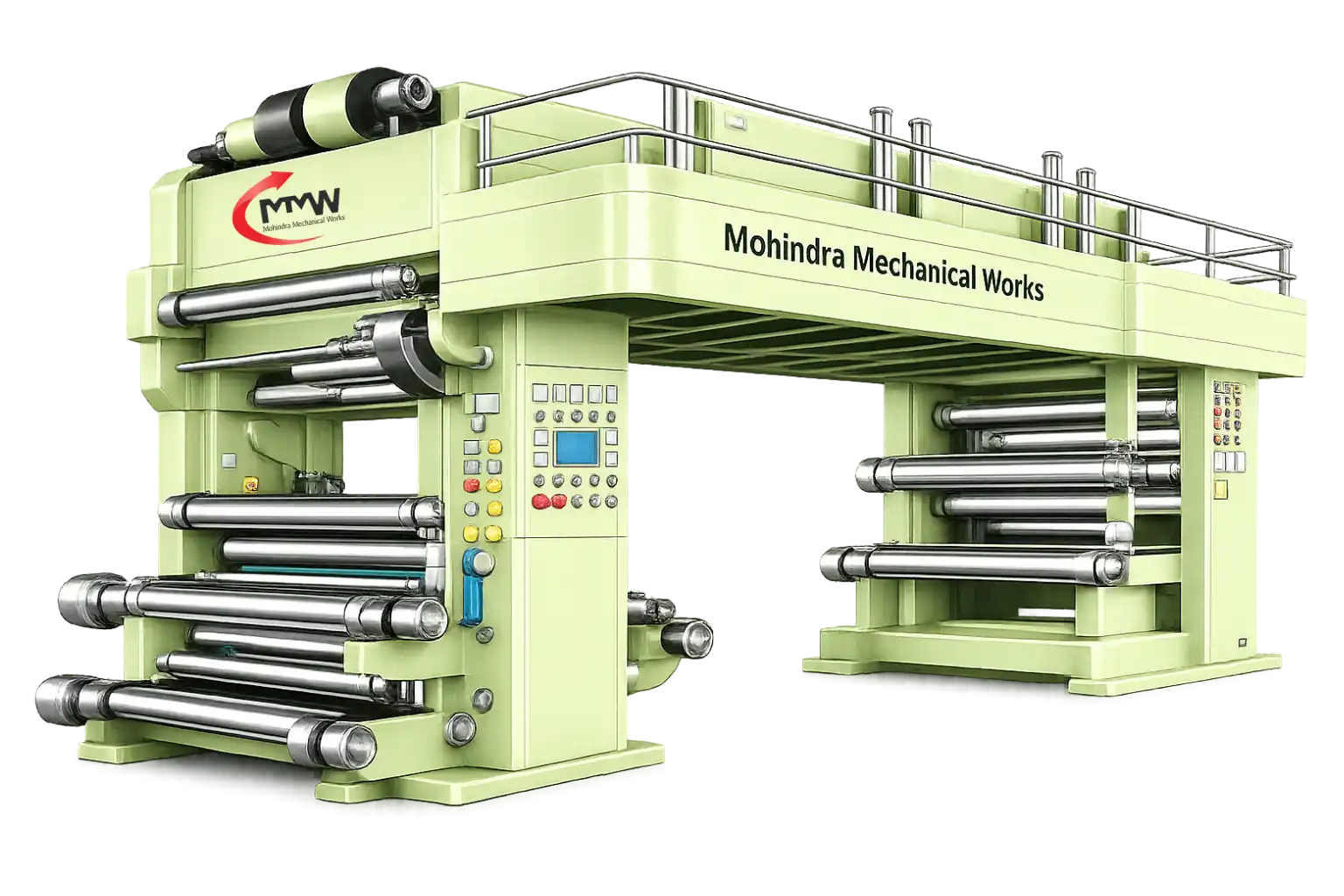

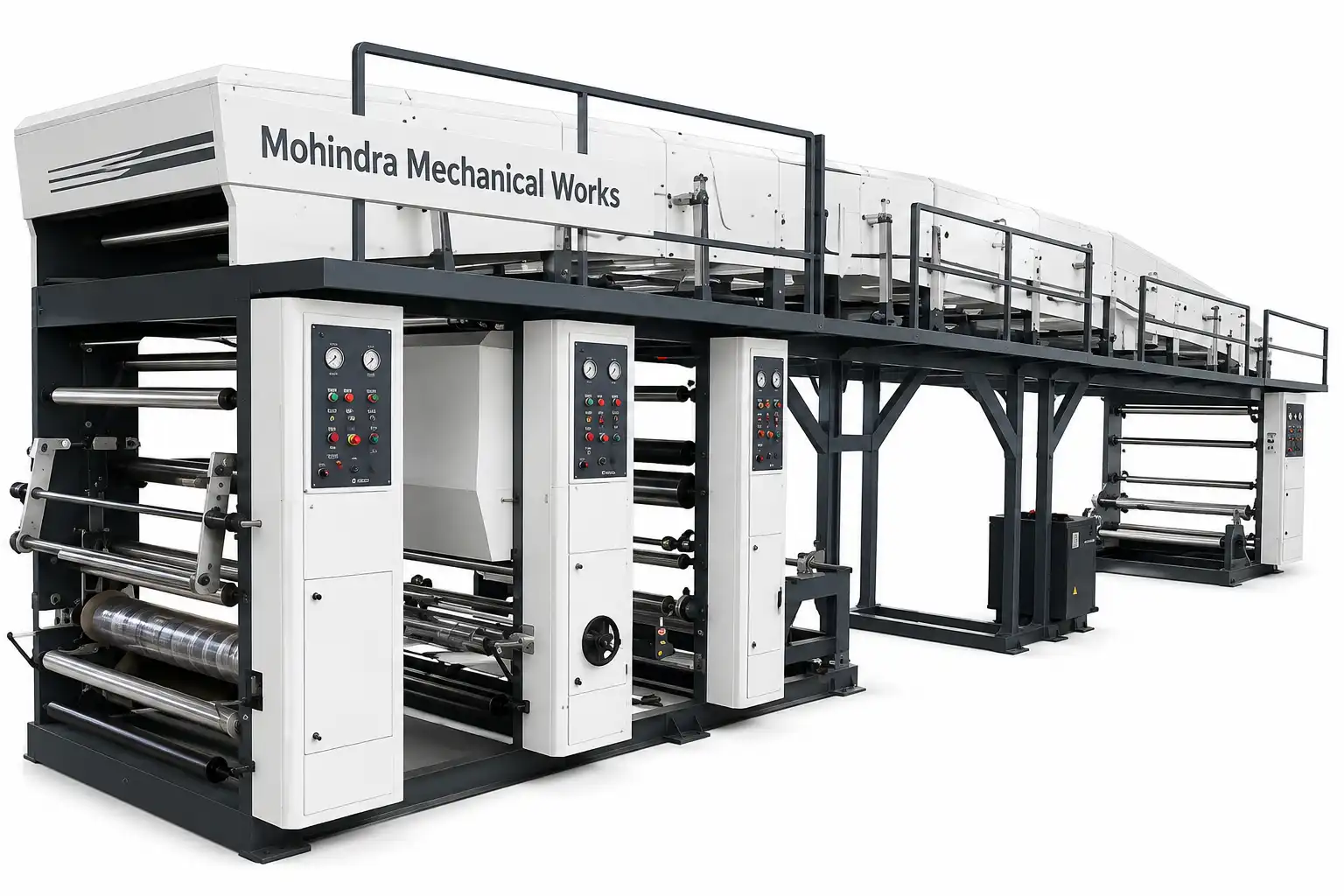

Fabric-to-Paper Lamination Machine

Engineered to laminate fabric with paper for decorative, packaging and industrial products. The machine maintains accurate tension and even adhesive distribution throughout production.

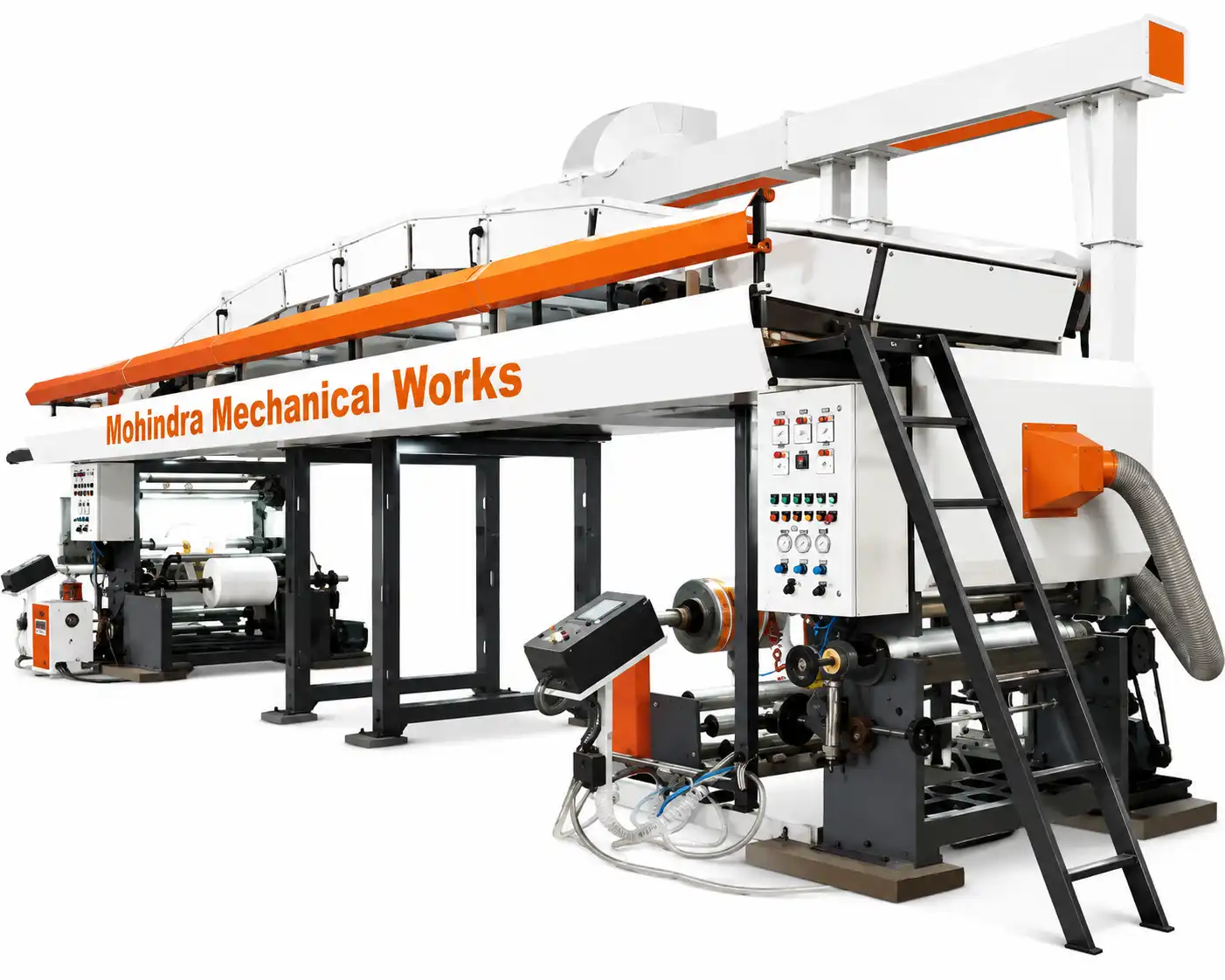

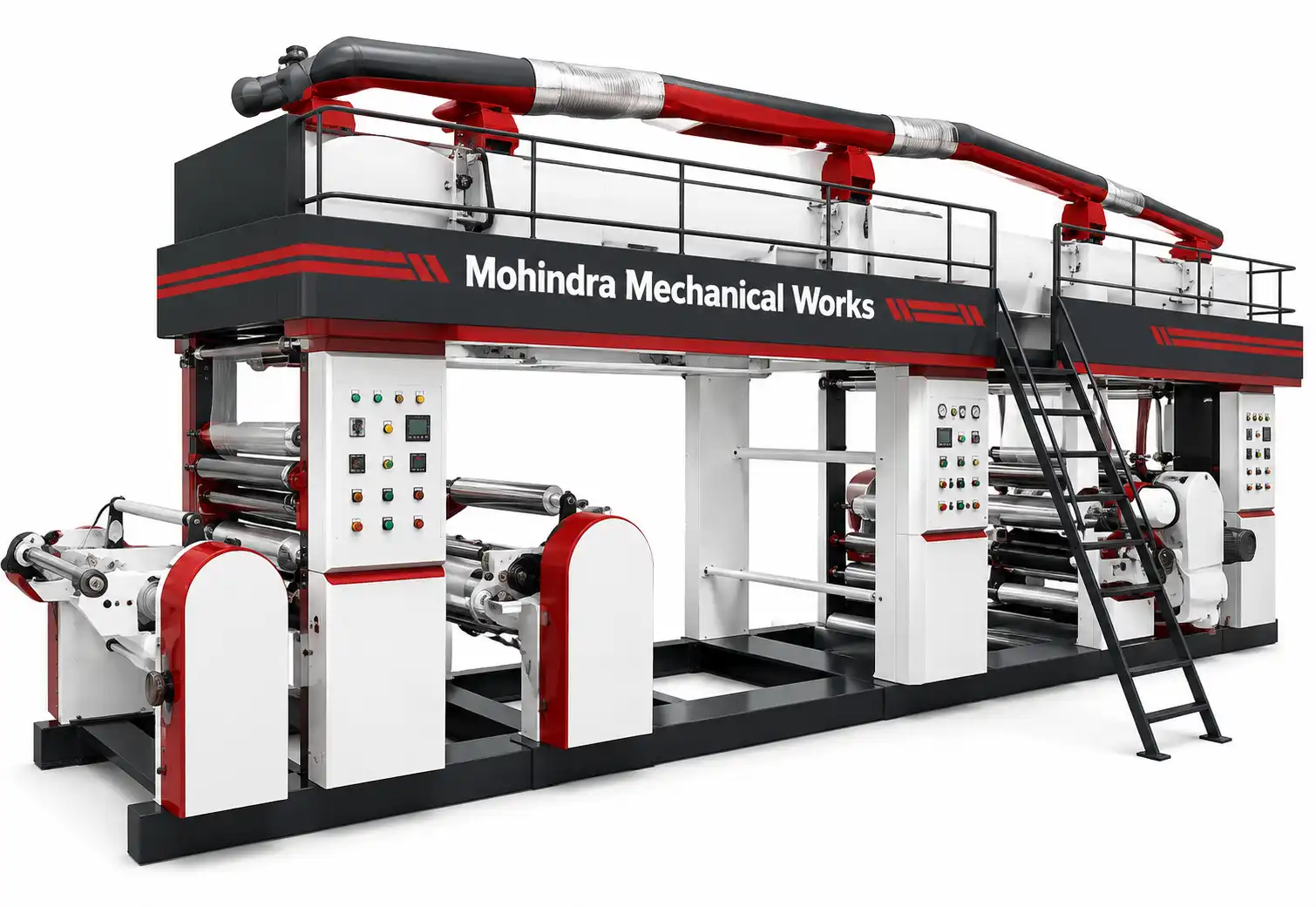

Fabric-to-Fabric Lamination Machine

Designed for solvent-based lamination of woven fabric with film, paper or compatible substrates. It ensures strong bonding, stable roll movement and consistent finished quality.

Fabric & PVC Film Lamination Machine

Designed for bonding PVC film with different fabrics using solvent-based adhesive. It delivers uniform coating, strong adhesion and wrinkle-free lamination for industrial applications.

Explore More Options

Need something different for your factory? We have more tools for your needs. If you want to lower emissions and don’t need drying, check out our Solventless Lamination Machine.
